Evolution Racewerks Charge Pipe Kit – BMW X1 / Z4 N20 (E84 / E89)

OVERVIEW

The Evolution Racewerks Charge Pipe Kit replaces the factory soft plastic charge pipe on E-chassis BMW models with the N20 turbo four-cylinder: the 2011–2015 X1 sDrive28i / xDrive28i (E84) and the 2011–2016 Z4 sDrive28i (E89). The factory pipe is prone to breaking under high boost; this kit replaces it with two mandrel-bent 6061 aluminum pipes (upper and lower), both required for installation.

The upper pipe steps up to 2.75" to match the throttle body (the factory pipe is 2.5"). Smooth bends keep charge air velocity up for better throttle response and less turbo lag. A CNC machined factory-style O-ring and lock flange at the throttle body and a CNC machined MAP sensor flange with the factory O-ring seal keep the connections leak-free and make removal as quick as stock.

SPECS

• Two mandrel-bent 6061 aluminum pipes (upper and lower)
• Upper pipe 2.75", throttle body matched
• CNC machined factory-style O-ring throttle body lock flange; pressure tested to 25 PSI
• CNC machined MAP sensor flange using the factory O-ring seal
• Beaded ends and T-bolt clamps keep the piping from blowing off under boost
• Two 1/8" NPT bungs (one per pipe), pre-capped, for methanol/nitrous injection or a boost source
• Compatible with the factory electronic diverter valve
• Finish options: Brush, Mirror Polish, or Type III Hard Anodized Black (harder, more dent-resistant, OEM look)
• Made in the USA, manufactured in-house
• Limited Lifetime Warranty

PARTS INCLUDED

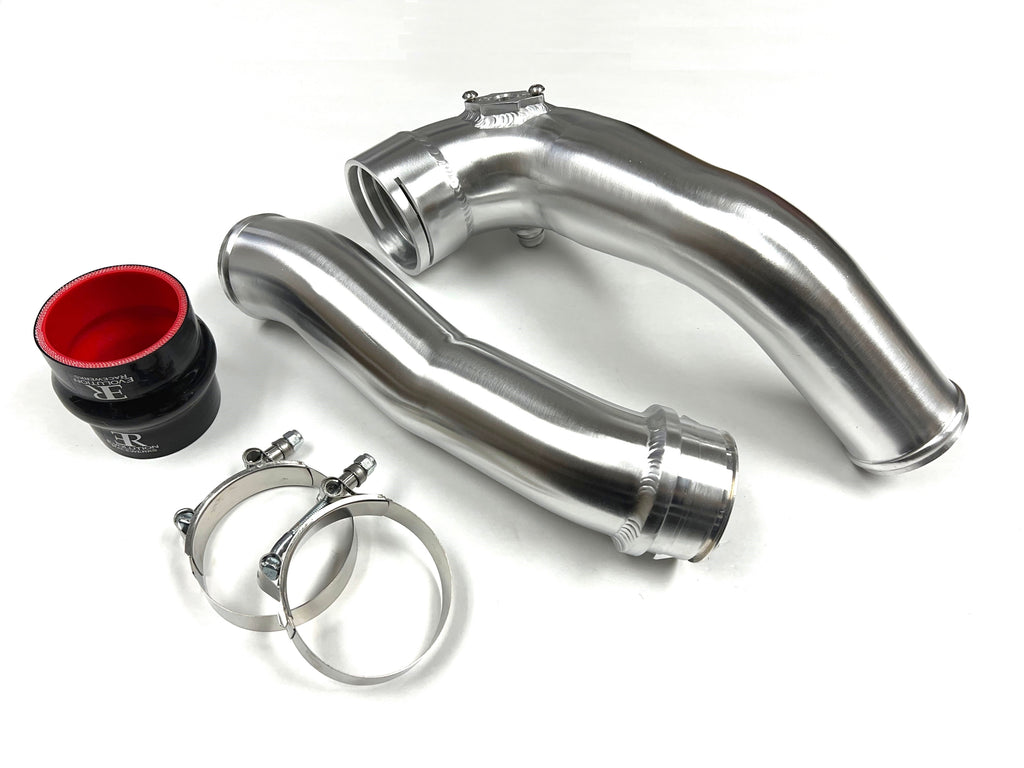

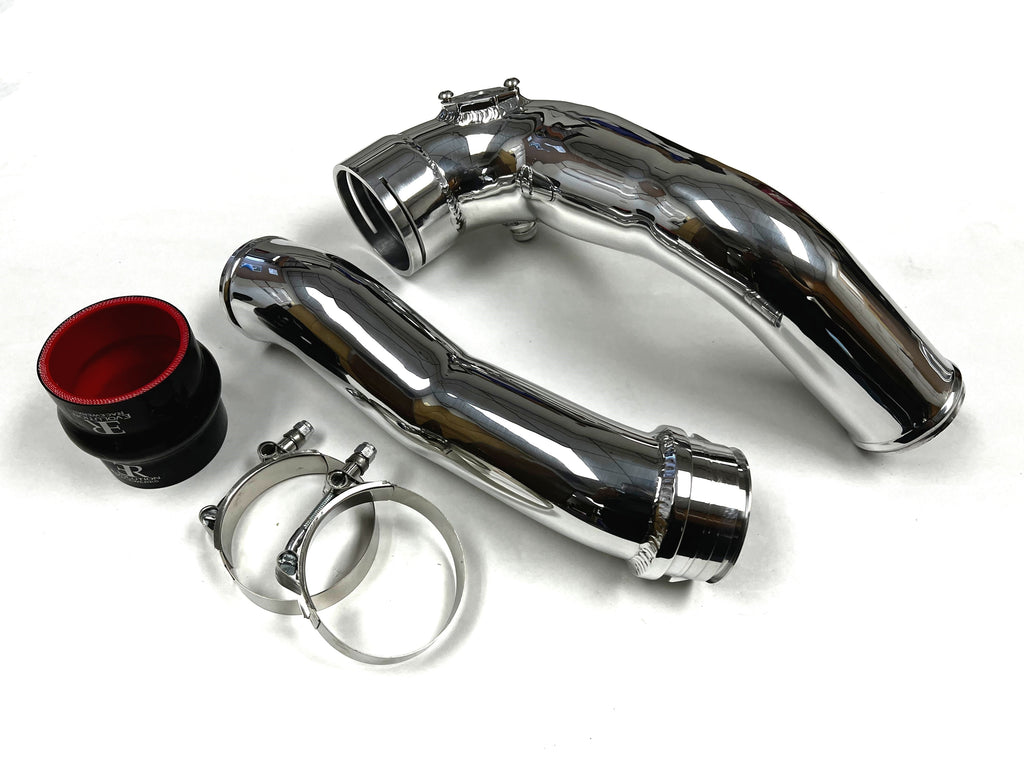

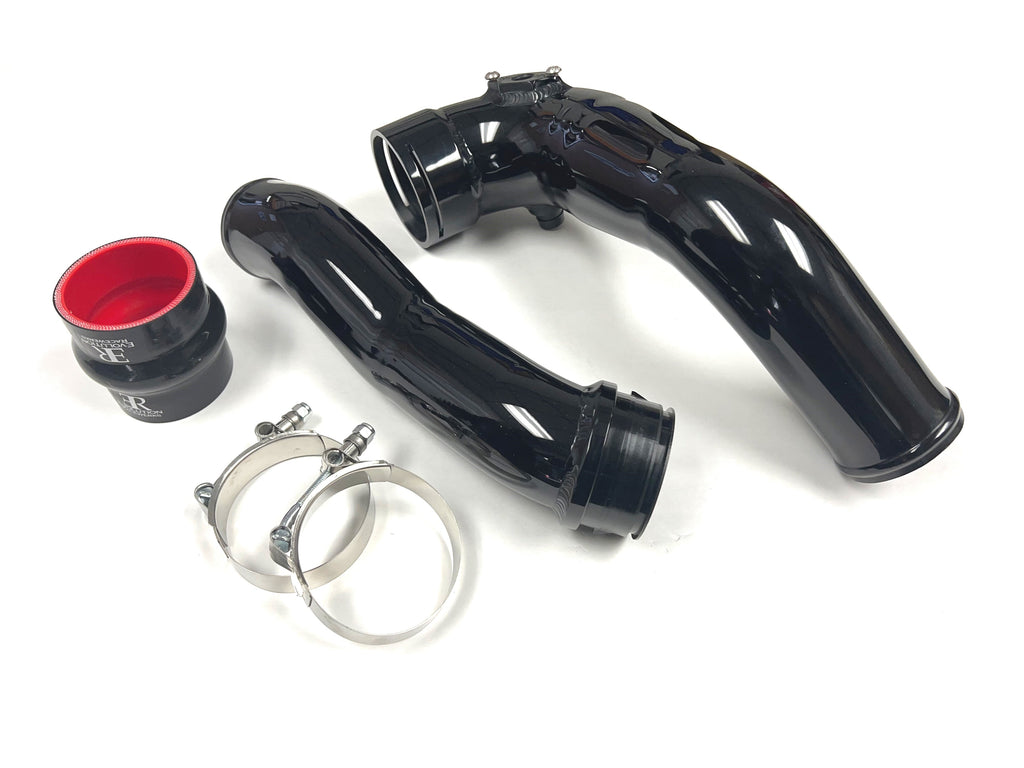

• Upper and lower charge pipes in the selected finish
• Silicone hose
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware; the kit retains the factory electronic diverter valve and includes all installation hardware.

Installation

• Evolution Racewerks does not publish an installation guide or video for this charge pipe.
• Replaces the factory plastic charge pipe; reuses the factory throttle body O-ring and MAP sensor.
• Contact Speed Logic for installation support or fitment questions.

Notes

• Pair with the Evolution Racewerks Turbo to Intercooler (TIC) Kit for E-Chassis N20 for an all-metal intercooler piping system.
• For off-road competition use only. Not for sale, installation or use on licensed vehicles in California. A vehicle compliance waiver is required at purchase.

PART NUMBER

• BM-ICP013SA — Brush Finish
• BM-ICP013PA — Polish Finish
• BM-ICP013BA — Type III Hard Anodized Black
