OVERVIEW

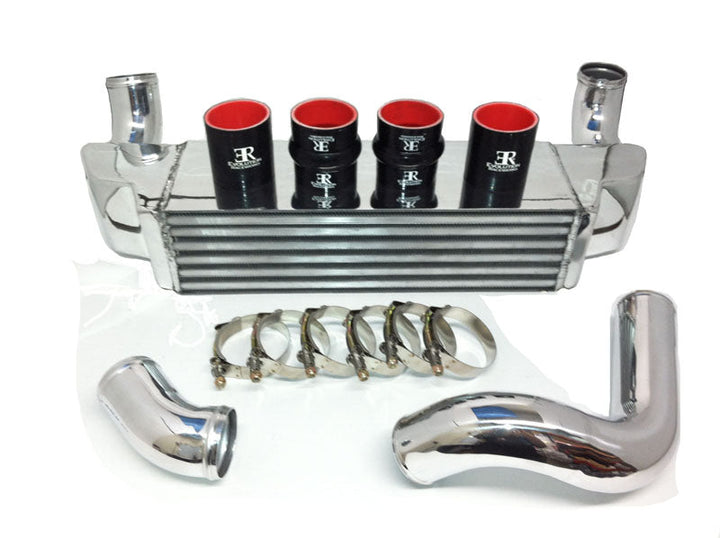

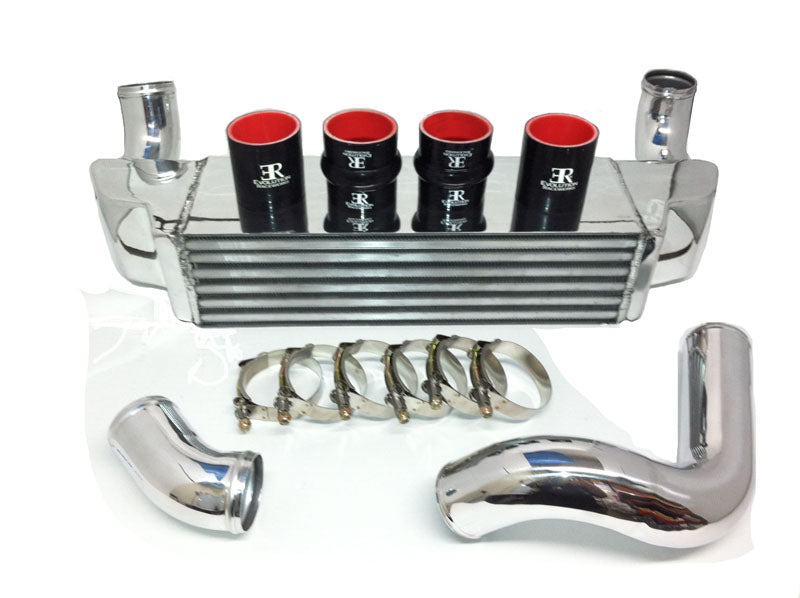

The Evolution Racewerks Competition Series front-mount intercooler for the 2007-10 535i N54 delivers a large increase in core volume over the factory unit, holding intake air temperatures down on repeat pulls. Basic Kit: intercooler and mounting hardware.
SPECS
- High-capacity bar-and-plate core
- Substantially greater core volume than OEM
- Basic Kit: intercooler and mounting hardware
- Direct bolt-in using factory mounting points

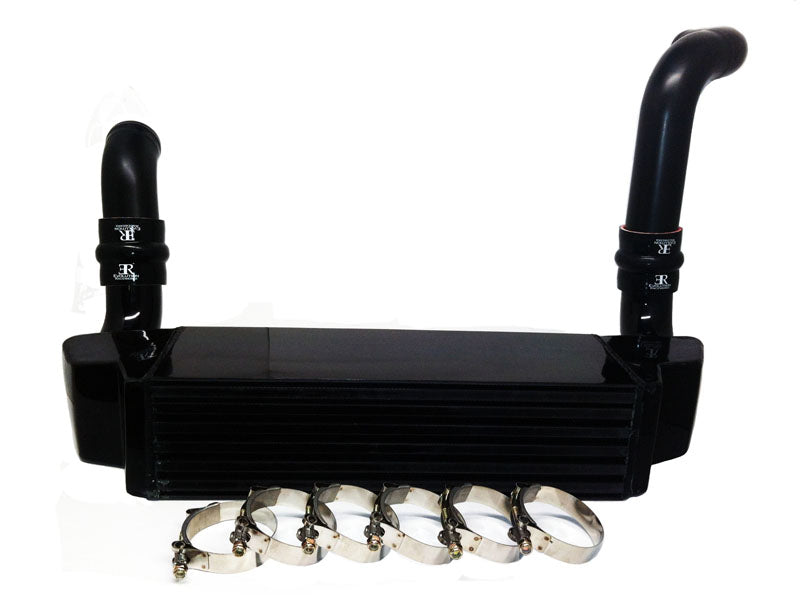

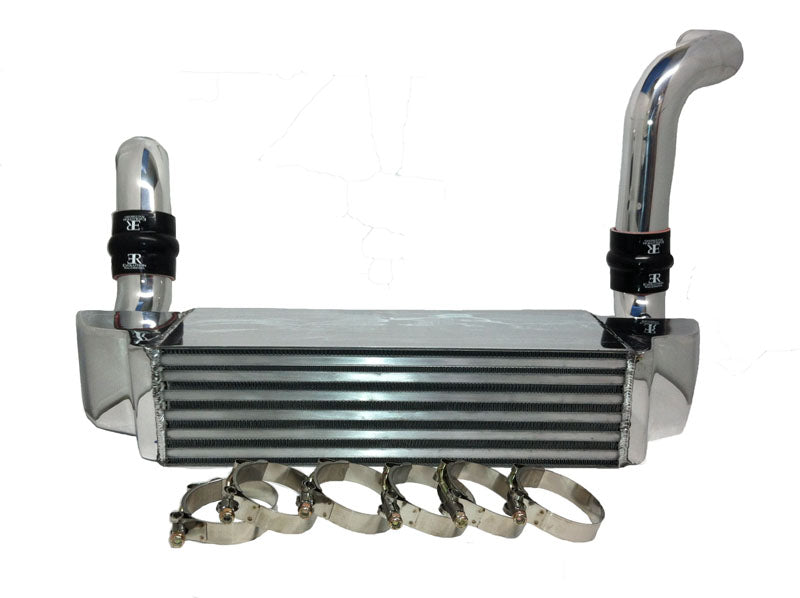

- Three finishes: Brush Silver, Mirror Polish, Type III Hard Anodized Black
PARTS INCLUDED
- ER Competition Series intercooler in the selected finish
- Mounting hardware and required couplers
TECH RESOURCES
Additional Parts Required
- Basic Kit does NOT include charge pipes — purchase the Standard Kit or charge pipes separately if needed.
Installation
- Installation guidance available through Evolution Racewerks technical support.
Notes
- Front bumper removal is required for installation.
PART NUMBER
- BM-FMIC004S1 — 535i E60 Basic Kit intercooler, Brush Silver
- BM-FMIC004P1 — 535i E60 Basic Kit intercooler, Mirror Polish
- BM-FMIC004B1 — 535i E60 Basic Kit intercooler, Type III Hard Anodized Black
- 535i E60 Standard Kit (intercooler + charge pipes), Brush Silver — BM-FMIC004S2
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | 535i | E60 | N54 | 2007–2010 |
