Evolution Racewerks Turbo to Intercooler (TIC) Charge Pipe Kit – BMW N55 (F2x / F3x / F87)

OVERVIEW

The Evolution Racewerks Turbo to Intercooler (TIC) Charge Pipe Kit replaces the factory rubber/plastic turbo-to-intercooler pipe on F-chassis BMW models with the N55 single-turbo six-cylinder: the 335i (F30), 435i (F32/F33), M135i (F20/F21), M235i (F22) and M2 (F87). The factory pipe is prone to breaking under high boost.

Hard mandrel-bent aluminum keeps a constant inner diameter and will not balloon under boost, improving throttle response and reducing turbo lag. Factory-style O-ring lock flanges, CNC machined, keep the connections leak-free and as quick to connect as stock.

SPECS

• Mandrel-bent high-grade 6061 aluminum piping
• Intercooler-matched 2.5" piping
• CNC machined factory-style O-ring lock flanges for a leak-free, quick-release connection
• Beaded ends and T-bolt clamps keep the piping from blowing off under boost
• Silicone hump hose included
• Finish options: Brush, Mirror Polish, or Type III Hard Anodized Black (harder, more dent-resistant, OEM look)
• Made in the USA, manufactured in-house
• Limited Lifetime Warranty

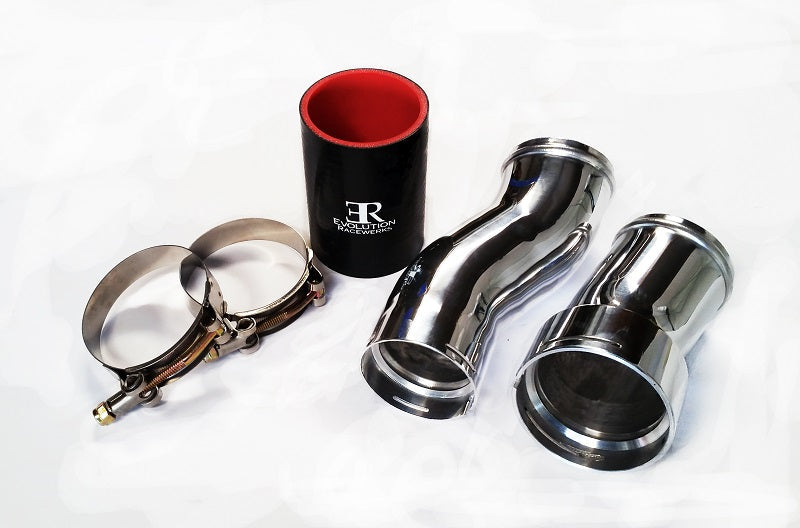

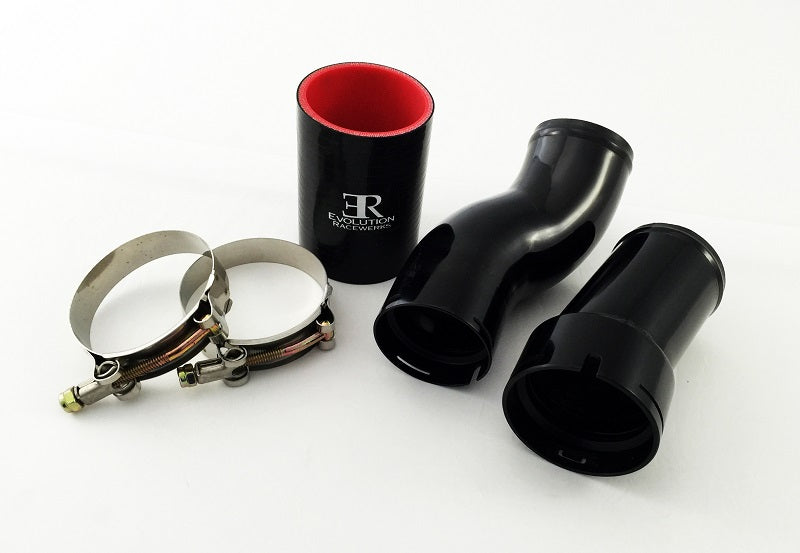

PARTS INCLUDED

• Turbo to intercooler (TIC) charge pipe in the selected finish
• Silicone hump hose
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware; all installation hardware and the silicone hump hose are included.
• Optional companion part: Evolution Racewerks Charge Pipe – BMW N55 (F2x / F3x / F87 / F25 / F26) — pair the two for an all-metal intercooler piping system.

Installation

• Evolution Racewerks does not publish an installation guide or video for this charge pipe.
• Replaces the factory turbo-to-intercooler pipe in the factory location.
• Contact Speed Logic for installation support or fitment questions.

Notes

• For off-road competition use only. Not for sale, installation or use on licensed vehicles in California. A vehicle compliance waiver is required at purchase.

PART NUMBER

• BM-ICP007STIC — Brush Finish
• BM-ICP007PTIC — Polish Finish
• BM-ICP007BTIC — Type III Hard Anodized Black

VEHICLE APPLICATIONS
