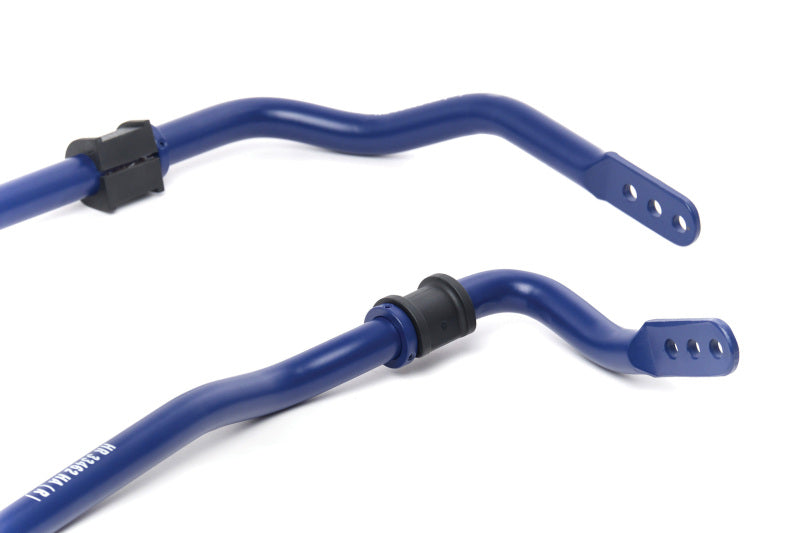

H&R Sport Sway Bar Kit – BMW M5 (E60) / M6 Coupe (E63, S85)

OVERVIEW

H&R's Sport Sway Bar Kit for the E60 M5 and E63 M6 Coupe replaces the factory anti-roll bars with stiffer H&R bars, increasing roll stiffness to cut body roll and sharpen turn-in without lowering the car or affecting ride quality. It's available as a matched Front & Rear Set, or as a Front Only or Rear Only bar so you can tune the front-to-rear balance or upgrade one end at a time.

The rear bar has a 3-hole adjustable end so roll stiffness can be tuned, and H&R's urethane/Teflon composite bushings are included with each bar; they resist squeaks and need no lubrication.

SPECS

• Front bar: 30mm, non-adjustable (70426)
• Rear bar: 21mm, 3-hole adjustable (71426)
• Increases roll stiffness versus the factory sway bars to reduce body roll
• Does not change ride height, spring rate or damping
• Urethane/Teflon composite bushings — no lubrication required
• Made in Germany at H&R's ISO9001-certified facility
• Available as Front & Rear Set, Front Only, or Rear Only

PARTS INCLUDED

• Sway bar(s) for the selected configuration (Front & Rear Set, Front Only, or Rear Only)
• H&R mounting bushings and hardware for the selected configuration
• See the fitting instructions supplied in the box for the full bill of materials

TECH RESOURCES

Additional Parts Required

• None. H&R includes the mounting bushings and hardware needed for installation with each configuration; the factory end links are reused.
• Installer-supplied tools: jack and stands, standard hand tools and a torque wrench.

Installation

• Illustrated fitting instructions are included in the box with each sway bar. H&R does not publish a separate per-application installation PDF for its sway bars.
• H&R Warranties & Claims (PDF) — official H&R warranty terms, coverage periods and claim procedure.

Notes

• Pairs with H&R 50463 Sport Springs (M5) and H&R 29158-1 Sport Springs (M6).
• M6 Coupe (E63) only — the M6 Convertible (E64) is not listed for this kit.
• Confirm your exact model with Speed Logic before ordering.

PART NUMBER

• 72426 — Front & Rear Set
• 70426 — Front Only
• 71426 — Rear Only
