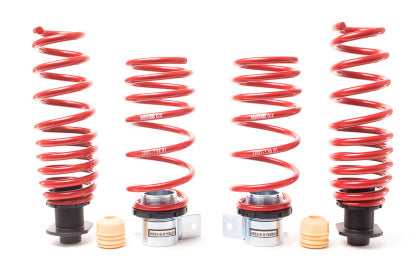

H&R VTF Adjustable Lowering Springs – BMW M5 (F10, S63) / M6 Gran Coupe (F06, S63)

OVERVIEW

This is H&R's VTF adjustable lowering spring set for the F10 M5 and F06 M6 Gran Coupe. Rather than a single fixed drop, the kit lets the installer set ride height and stance to suit the car.

Lowering the body reduces the center of gravity and cuts body roll, which improves handling and chassis balance while closing up the fender gap. H&R's progressive rates run 10–20% higher than stock, keeping ride quality civil in normal driving and firming up for proper chassis composure when the road turns.

Every H&R spring is crafted from 54SiCr6 spring steel and shot-peened, which H&R states increases spring life by more than 200% and keeps the springs from settling or sagging. All production is completed in-house at H&R's ISO 9001-certified facility in Germany, and each spring is 100% tested before it leaves the plant. Quality assurance is backed by TÜV and ISO 9001 certification.

SPECS

• Approximate front lowering: 1.6"
• Approximate rear lowering: 1.5"
• Progressive spring rate, increased 10–20% over stock
• Material: 54SiCr6 spring steel
• Shot-peened; H&R states spring life is increased by more than 200%
• Will not settle or sag
• Manufactured in-house in Germany; every spring 100% tested before shipping
• TÜV and ISO 9001 certified quality assurance

PARTS INCLUDED

• Complete kit as supplied by H&R Springs; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. H&R specifies no additional hardware for this spring kit.
• Four-wheel alignment after installation — H&R states that whenever vehicle ride height is adjusted, the wheel alignment must be checked.
• Professional installation — H&R states its springs and suspensions should be installed by professional suspension mechanics only.
• Spring compressor (installer-supplied) to safely disassemble the factory strut assemblies.
• Bumpstop trimming may be required — check your kit number against the bumpstop table in the H&R technical information sheet below before installation.

Installation

• H&R Springs Technical Information & Installation Guide (PDF) — spring identification, ride-height measurement and adjustment, bumpstop trimming table and alignment requirements.
• Follow the factory service manual procedure for spring replacement and for the post-installation alignment, as directed by H&R.

Notes

• These cars are fitted with electronically adjustable dampers from the factory; confirm compatibility with Speed Logic before ordering.
• The M6 Coupe (F13) and Convertible (F12) take a separate VTF kit, 23014-1.

PART NUMBER

• 23014-2
