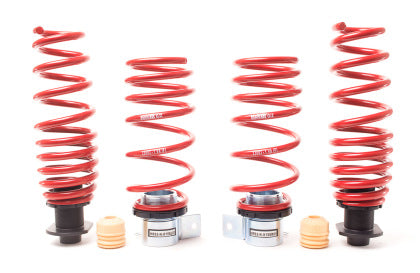

H&R VTF Adjustable Lowering Springs – BMW M2 (F87, N55/S55) / M3 / M4 (F8x, S55)

OVERVIEW

H&R VTF Adjustable Lowering Springs give the F8x M3 / M4 and F87 M2 a tunable ride height instead of a single fixed drop. Rather than committing to one lowering figure, the installer sets the car within the range H&R publishes for each chassis, so stance and fender gap can be dialed in to the wheel and tire package.

Lowering the center of gravity reduces body roll and improves handling and chassis balance while delivering an aggressive but driveway-friendly stance. The kit works with the factory dampers, so no strut replacement is required.

H&R springs are made from a special 54SiCr6 spring steel and shot-peened to increase service life by more than 200%, so they are stronger and more durable than ordinary coil springs and will not settle or sag. All production is completed in-house, and every spring is 100% tested before it leaves the ISO9001-certified facility in Germany.

SPECS

• Adjustable lowering range, set during installation
• M2 / M2 Competition (F87): front 0.8"–1.4", rear 0.75"–1.2"
• M3 (F80): front 1.2"–1.8", rear 0.4"–1.0"
• M4 Coupe (F82): front 1"–1.6", rear 0.75"–1.2"
• Designed for use with the factory dampers
• Material: 54SiCr6 spring steel
• Shot-peened to increase service life by more than 200%
• Will not settle or sag
• 100% tested before leaving the production facility
• TÜV and ISO9001 certified quality assurance
• Manufactured in-house by H&R in Germany

PARTS INCLUDED

• Complete kit as supplied by H&R Springs; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. H&R Springs specifies no additional hardware for this spring kit.
• Four-wheel alignment after installation (installer-supplied service) — required any time ride height is changed, and again if the ride height is later readjusted.
• Professional installation — H&R specifies that its springs be installed by professional suspension mechanics only.
• Spring compressor (installer-supplied tool) — required to disassemble the factory struts.
• Confirm your car’s damper configuration (Adaptive M Suspension / EDC) with Speed Logic before ordering.

Installation

• H&R Springs Technical & Installation Information (PDF) — installation requirements, ride-height measurement procedure, bumpstop trimming table and alignment notes.

Notes

• Lowering amounts vary by chassis — see SPECS above. Confirm fitment with Speed Logic before ordering if your car has any non-standard suspension configuration.

PART NUMBER

• 23003-1
