Mishimoto Performance Air Intake – Toyota GR Supra 3.0 (A90)

OVERVIEW

The factory Supra intake routes air through a flat panel filter and resonator chambers that cost airflow. Mishimoto's performance intake replaces it with a rotational-molded airbox and tube, an oiled cone filter and no resonators, for a system Mishimoto measured at 17% less restrictive than stock.

A heat shield built into the airbox keeps engine-bay heat away from the filter, and a CNC-machined billet aluminum adapter with an OEM-style quick disconnect mates to the turbo. It clears front strut braces and installs in about an hour.

SPECS

• 17% less restrictive than the stock intake
• Cross-linked polyethylene airbox and intake tube

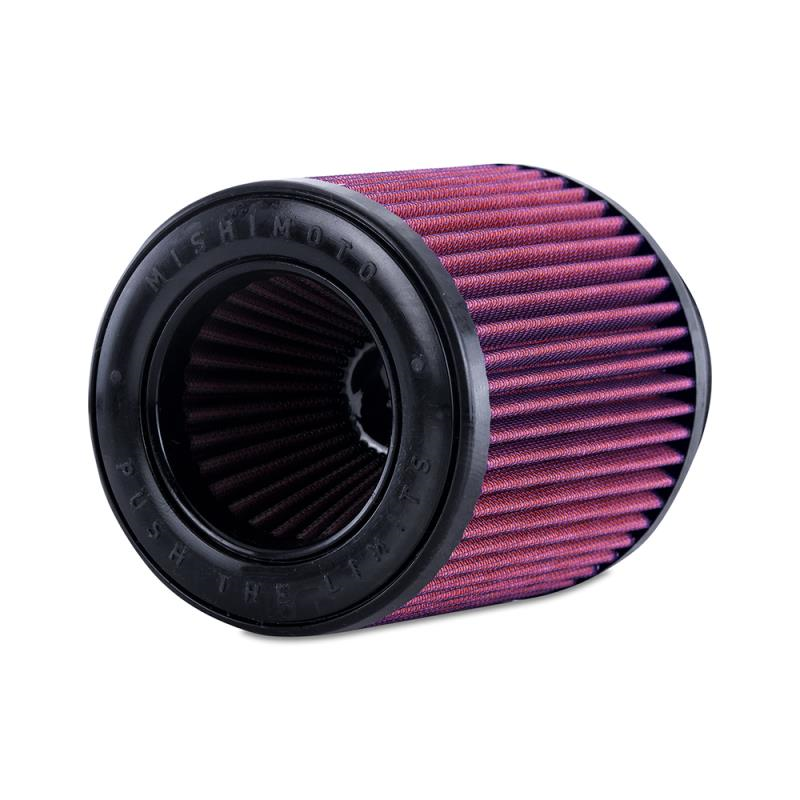

• High-flow oiled cone filter (MMAF-45575)
• Resonator chambers removed
• Heat shield integrated into the airbox
• CNC-machined billet aluminum turbo adapter with OEM-style quick disconnect
• Compatible with front strut support bars
• Installation difficulty: easy, about 1 hour
• Engine code: B58
• Chassis code: A90
• U.S. Patents D967,862 S1 and 11,506,157 B2
• Mishimoto Lifetime Warranty

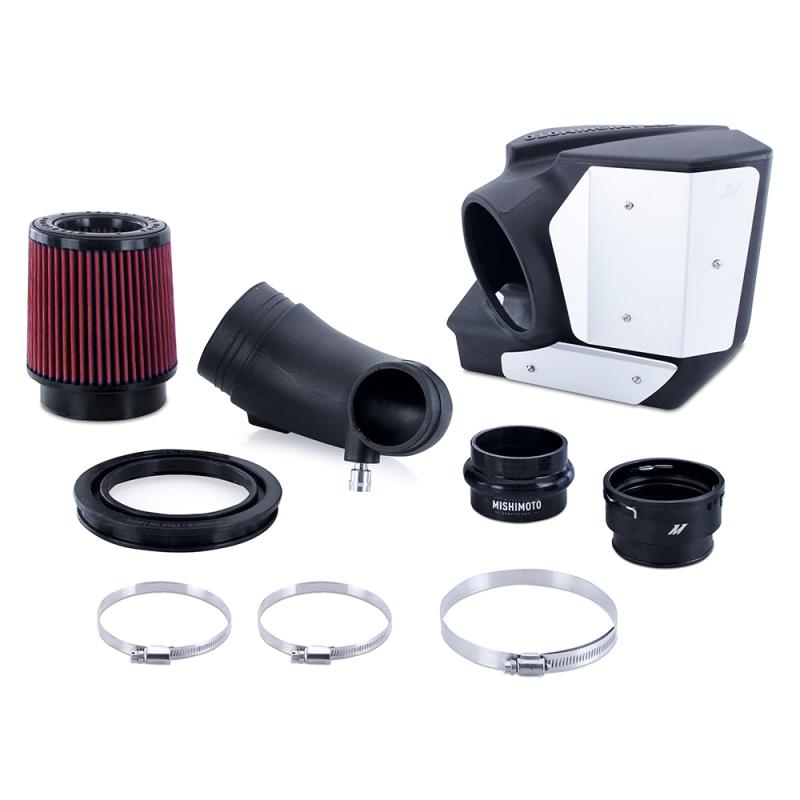

PARTS INCLUDED

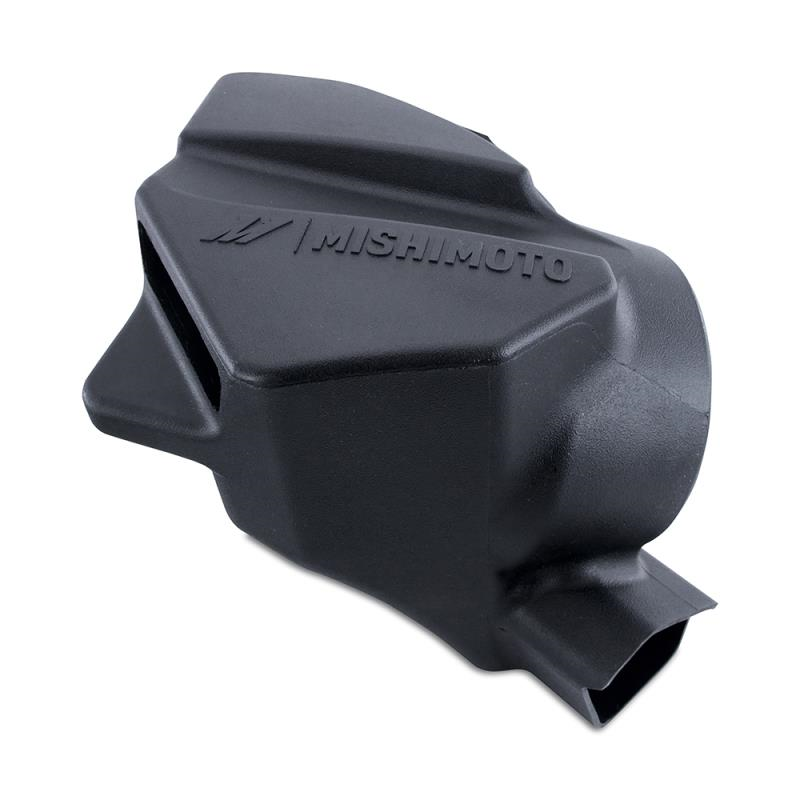

• (1) Airbox with pre-installed heat shield
• (1) Intake tube
• (1) Airbox sealing gasket
• (1) High-flow oiled filter
• (1) Aluminum quick-disconnect fitting
• (1) Silicone coupler
• (3) Worm gear clamps
• Mishimoto Lifetime Warranty

TECH RESOURCES

Additional Parts Required

• None. The kit is a complete bolt-on system.
• Optional calibration: MHD Super License – Toyota GR Supra (B58) or Bootmod3 B58 Tune – Toyota GR Supra.

Installation

• Mishimoto GR Supra Performance Air Intake – Installation Guide (PDF)

Notes

• Clean and re-oil the filter every 10,000–15,000 miles under normal driving, and more often in dusty conditions. Re-oiling is not covered by the warranty.
• Check every clamp, coupler and fitting for proper tightness before driving, and recheck them after the first few miles.
• Price is for the item selected only; labor is not included.

PART NUMBER

• MMAI-SUP-20
