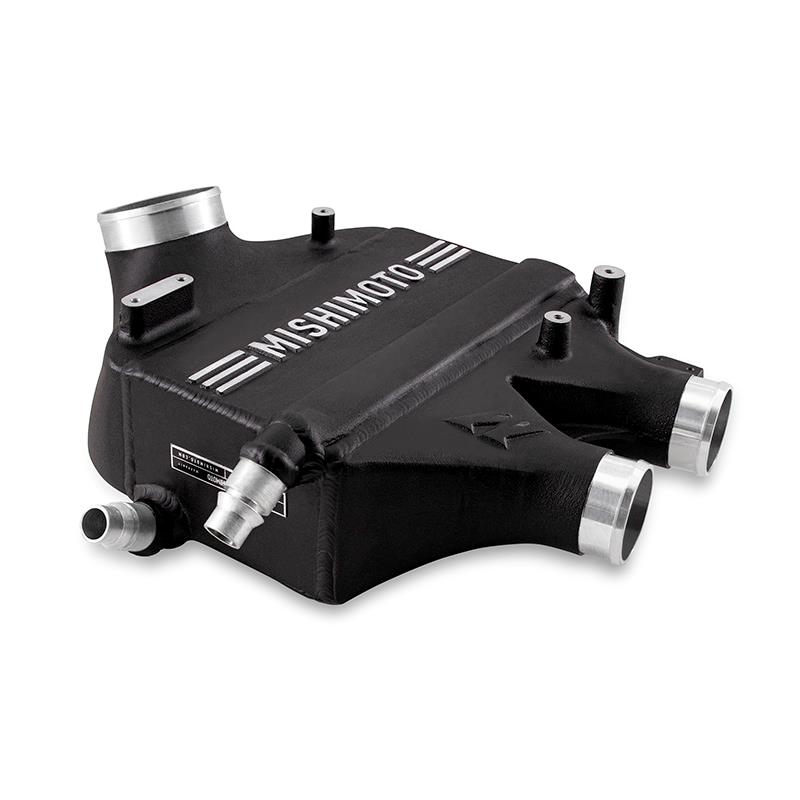

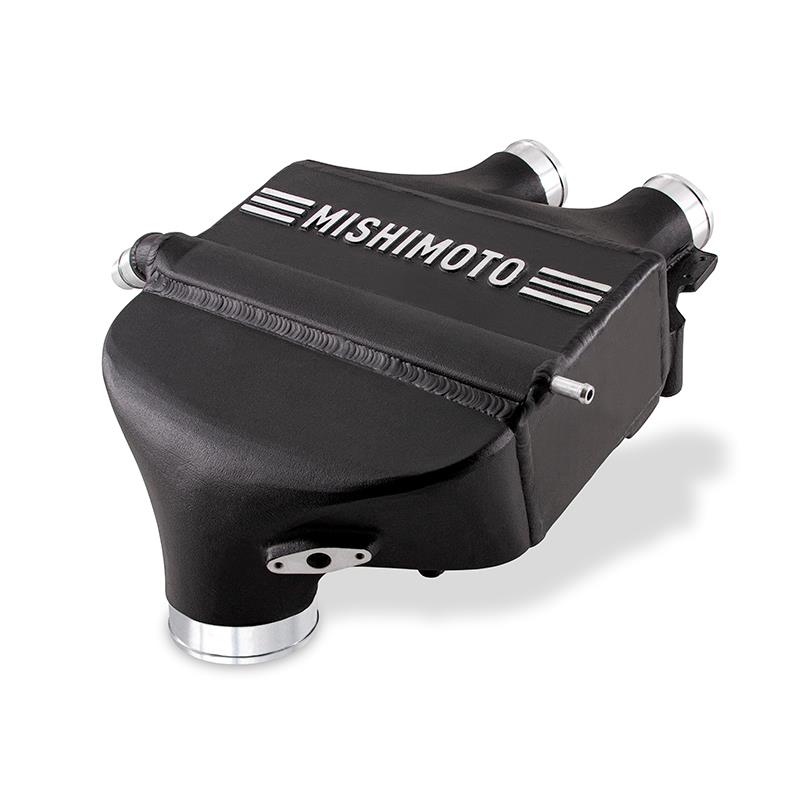

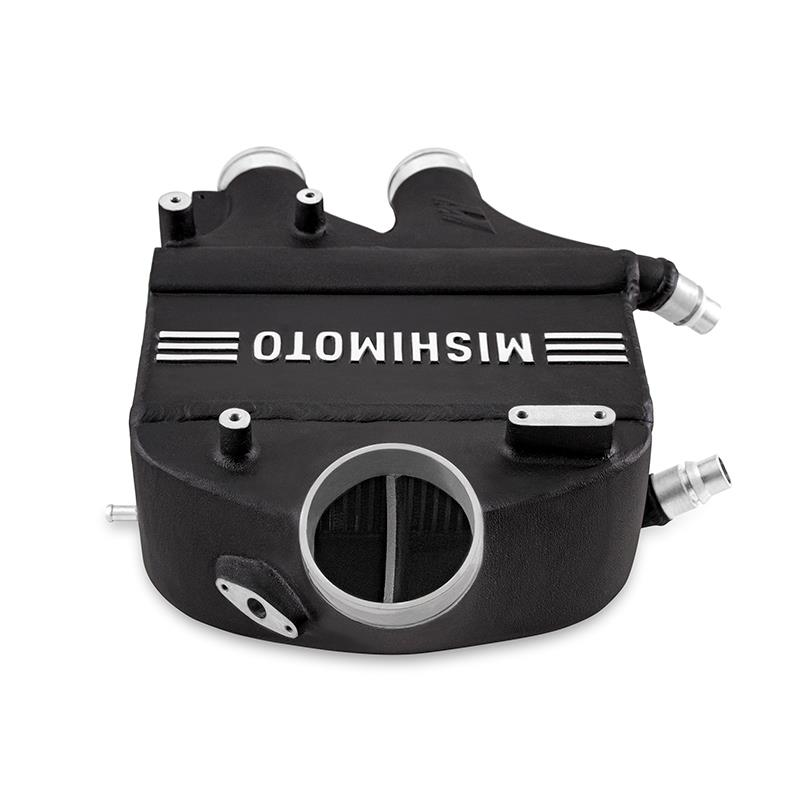

Mishimoto Performance Air-to-Water Intercooler, Black – BMW S55 M2 Competition / M3 / M4 (F8x)

OVERVIEW

The S55 cools its charge air with a top-mount air-to-water intercooler, and on a tuned car it heat-soaks quickly, pulling timing as intake temperatures climb. Mishimoto's replacement uses a TIG-welded bar-and-plate core with 29% more volume and cast aluminum end tanks with integrated air diverters.

Paired with Mishimoto's heat exchanger, it flowed 16% more air, cut intake temperatures by 12°F and averaged 11 whp and 8 wtq gains, with peaks of 31 whp. It works with the stock charge pipes or Mishimoto's, and carries CARB EO D-759-13.

SPECS

• 29% more core volume than stock
• TIG-welded bar-and-plate core, 3.7 in thick
• Single-pass internal fin layout in the coolant passage
• Cast aluminum end tanks with integrated inlet and outlet air diverters
• Inlet 2 in, outlet 3 in
• Micro-wrinkle black powder-coat finish
• Tested with Mishimoto heat exchanger: 16% more core flow, 12°F lower intake air temperature, average gains of 11 whp and 8 wtq, peaks of 31 whp and 10 wtq
• Clamp torque: 27 in-lb (3 Nm) recommended, 35 in-lb (4 Nm) maximum
• Compatible with stock and Mishimoto charge pipes
• CARB EO D-759-13
• Engine code: S55
• Chassis codes: F80, F82, F83, F87
• U.S. Patent D957,464 S
• Installation difficulty: easy
• Mishimoto Lifetime Warranty

PARTS INCLUDED

• (1) Performance air-to-water intercooler
• (1) CARB EO sticker
• Mounting hardware
• Mishimoto Lifetime Warranty

TECH RESOURCES

Additional Parts Required

• None. The intercooler reuses the factory charge pipes.
• Coolant is not supplied. The job opens the low-temperature charge-air coolant circuit, so plan to refill and bleed it with BMW-approved coolant.
• Recommended pairing: Mishimoto Heat Exchanger MMHE-F80-15 and Mishimoto Charge Pipe Upgrade MMICP-F80-15, or the complete Mishimoto Air-to-Water Intercooler Power Pack (MMB-F80-PP).

Installation

• Mishimoto F8X M3 / M4 Performance Air-to-Water Intercooler Parts & Installation Guide (PDF)
• Mishimoto F8X M2C / M3 / M4 Performance Air-to-Water Intercooler Installation Video (Mishimoto official YouTube channel)

Notes

• Check every clamp, coupler and fitting for proper tightness before driving, and recheck them after the first few miles.
• Price is for the item selected only; labor is not included.

PART NUMBER

• MMINT-F80-15
