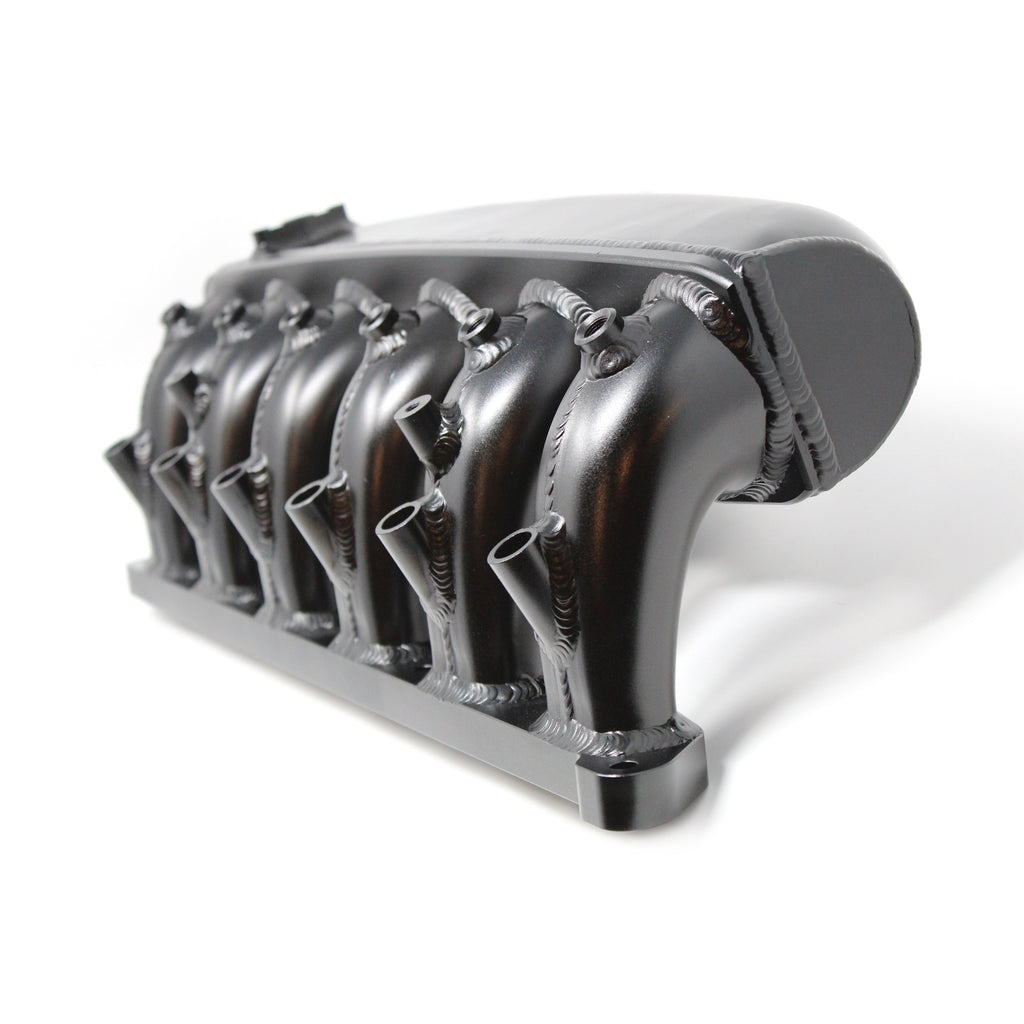

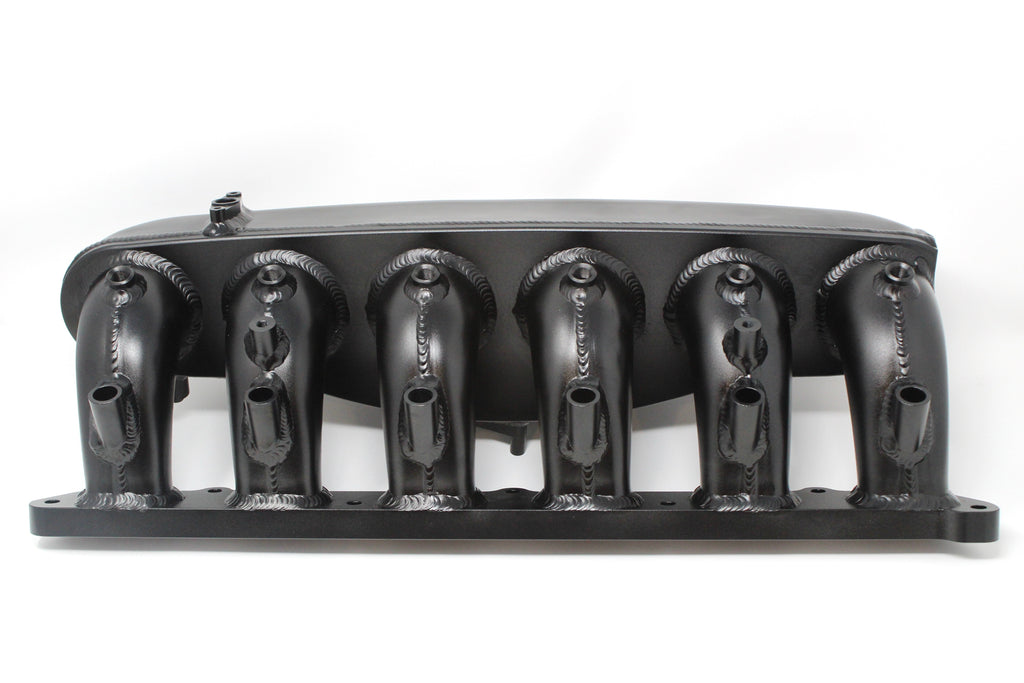

Black Market Parts (BMP) N54 Performance Intake Manifold (Stock Location) – BMW 135i / 1M / 335i / 535i

  • Sale
  • $599.99
Shipping calculated at checkout.

OVERVIEW

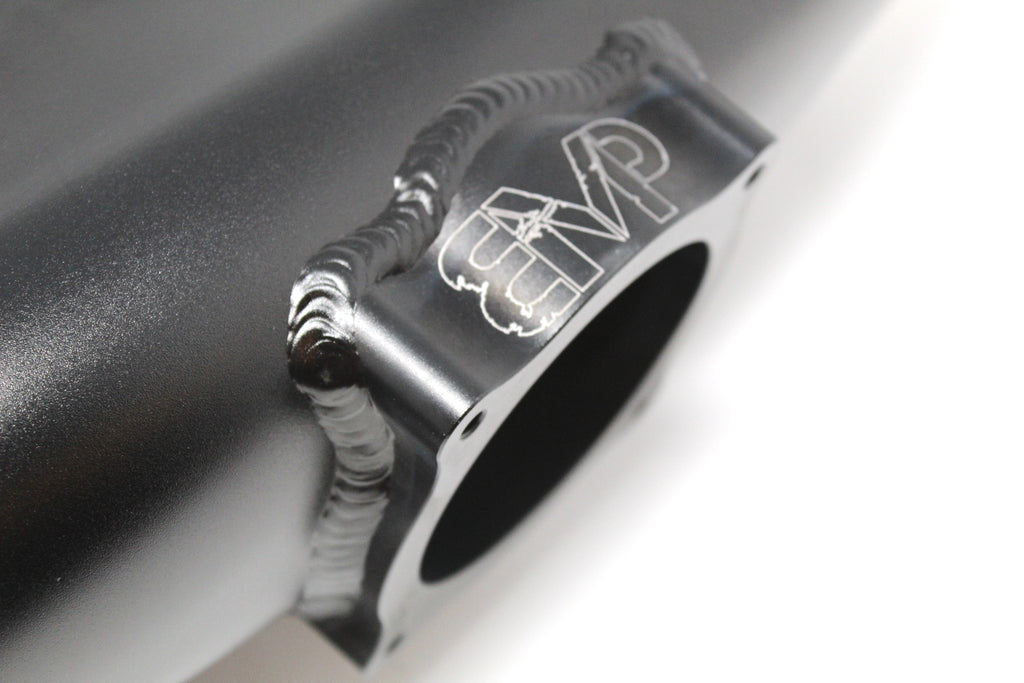

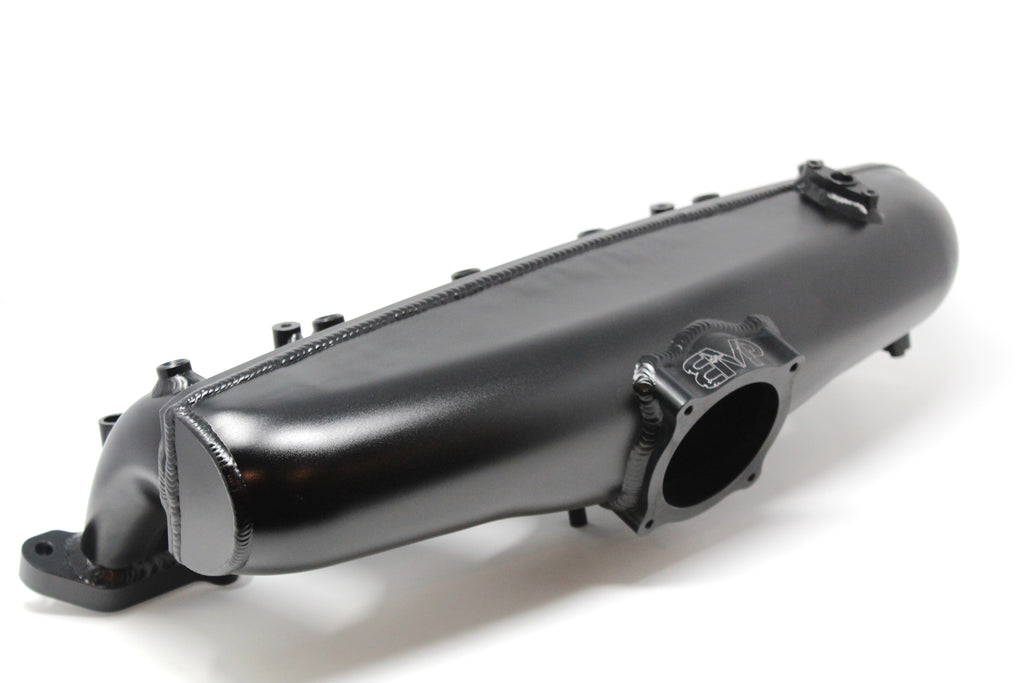

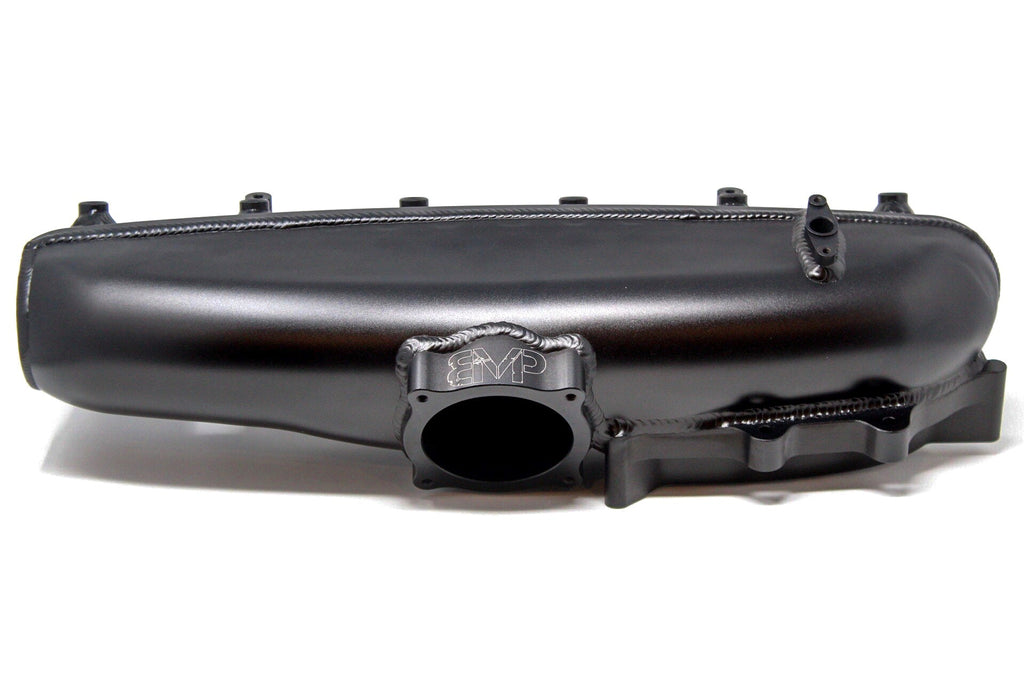

A stock-location performance intake manifold for the N54, built from die-formed sheet metal with CNC billet ends rather than cast. Because it is fabricated rather than cast, it runs lower intake air temperatures than the cast aftermarket manifolds it competes with, and it weighs 14.8 lbs bare.

It is built for a fuel system that is going to grow. Center-flow port injection bungs accept all injector brands, there are six 1/8 in NPT direct-port ports for methanol or nitrous, and further expansion ports cover a blow-off valve, boost gauge and Hobbs switch. Proprietary machining lets it seal on the factory o-rings instead of gasket maker, and spacers for the injectors and rail are included so the o-ring seats at the correct height.

SPECS

  • Stock location fitment
  • Die-formed sheet metal construction with CNC billet ends
  • 14.8 lbs bare
  • Center-flow port injection bungs - fit all injector brands
  • 6 x 1/8 in NPT direct-port ports for methanol or nitrous
  • Expansion ports for blow-off valve, boost gauge and Hobbs switch
  • Seals on OEM o-rings - no gasket maker required
  • Injector and rail spacers included
  • Runs lower IATs than cast aftermarket manifolds

PARTS INCLUDED

  • N54 performance intake manifold
  • Injector spacers
  • Fuel rail spacers
  • OEM-spec o-rings

TECH RESOURCES

Additional Parts Required

  • Not included, required if you are not using the phenolic spacer: 1 x M7 x 1.0 x 35 mm bolt and 1 x M7 flat washer.
  • The factory-style airbox is NOT compatible with this manifold. Plan your intake before ordering.
  • Extended intake manifold studs are needed to clear the taller stack. Required, not stocked by Speed Logic: Extended Intake Manifold Studs (501-0018).
  • Fresh intake manifold o-rings if you are reusing anything. Required, not stocked by Speed Logic: Intake Manifold O-Rings, OE Spec, 6 Pack (501-0001).

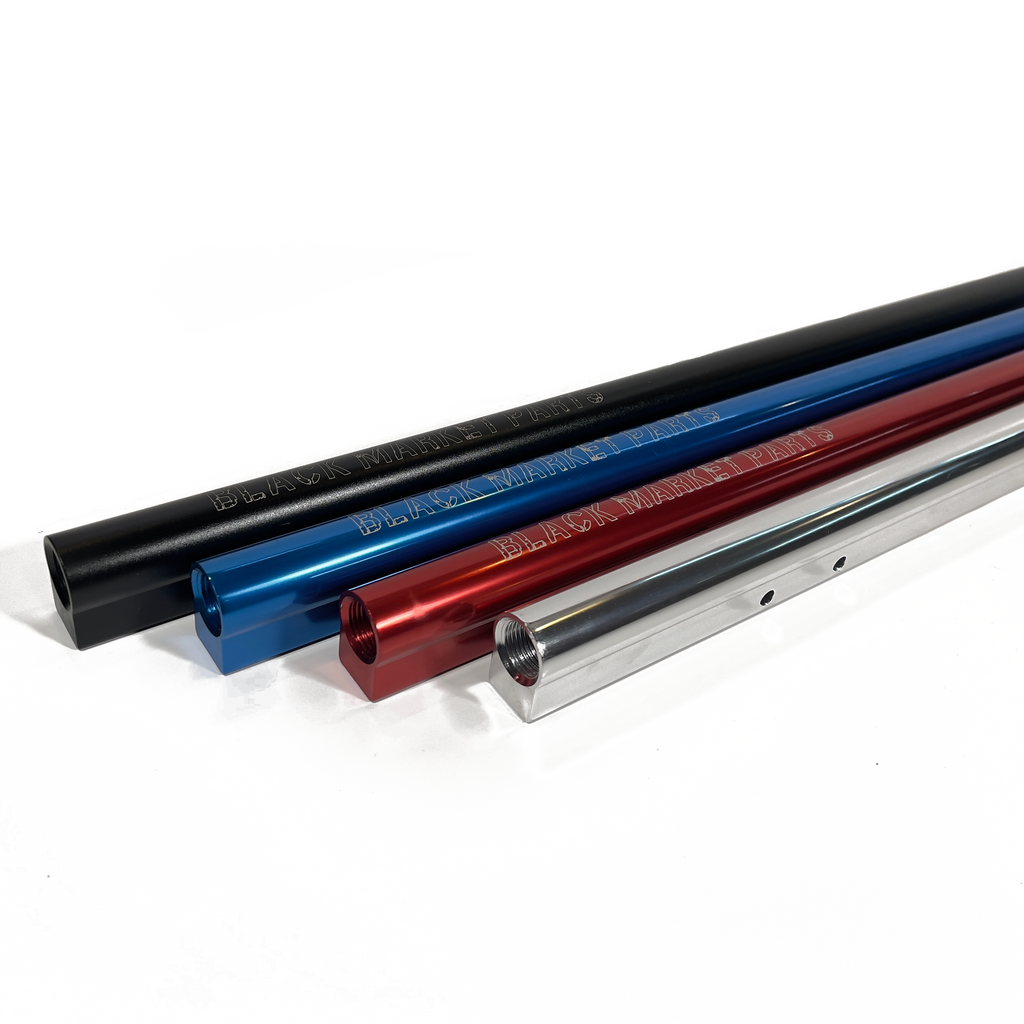

  • Port injection injectors, a feed line and a controller if you intend to use the port injection bungs. See our Black Market Parts N54 / N55 Port Injection Kit and Motiv Reflex Plus I/O Integration listings. Required, not stocked by Speed Logic: Port Injection Fuel Line (Top Mount Fuel Rail, 201-0188).
  • A phenolic spacer if you want to cut heat soak further. Optional, not stocked by Speed Logic: Phenolic Spacer for BMP Manifold, 1/2 in (501-0081).
  • An ignition kit in the aftermarket-manifold configuration if you are relocating the coils. See our Precision Raceworks N54 Ignition Kit listing.

Installation

  • Precision Raceworks does not publish an installation PDF for this manifold.
  • Depressurize the fuel system and drain coolant as required before removing the factory manifold.
  • Fit the supplied injector and rail spacers so each o-ring seats at the correct height - this is what allows the assembly to seal on o-rings rather than sealant.
  • Use extended studs, and torque the manifold down evenly in a cross pattern.
  • Blank any port injection or NPT ports you are not using, then leak- and boost-check before the first drive.
  • Professional installation is recommended.

Notes

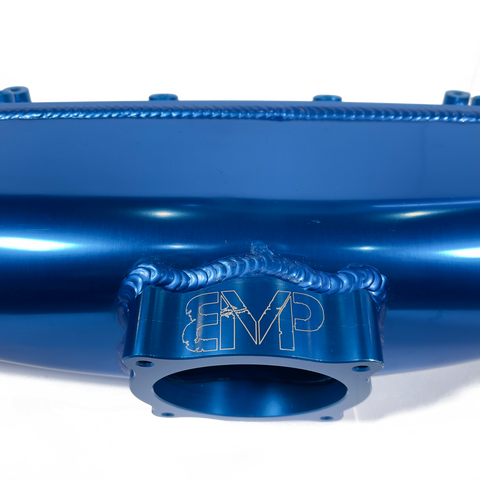

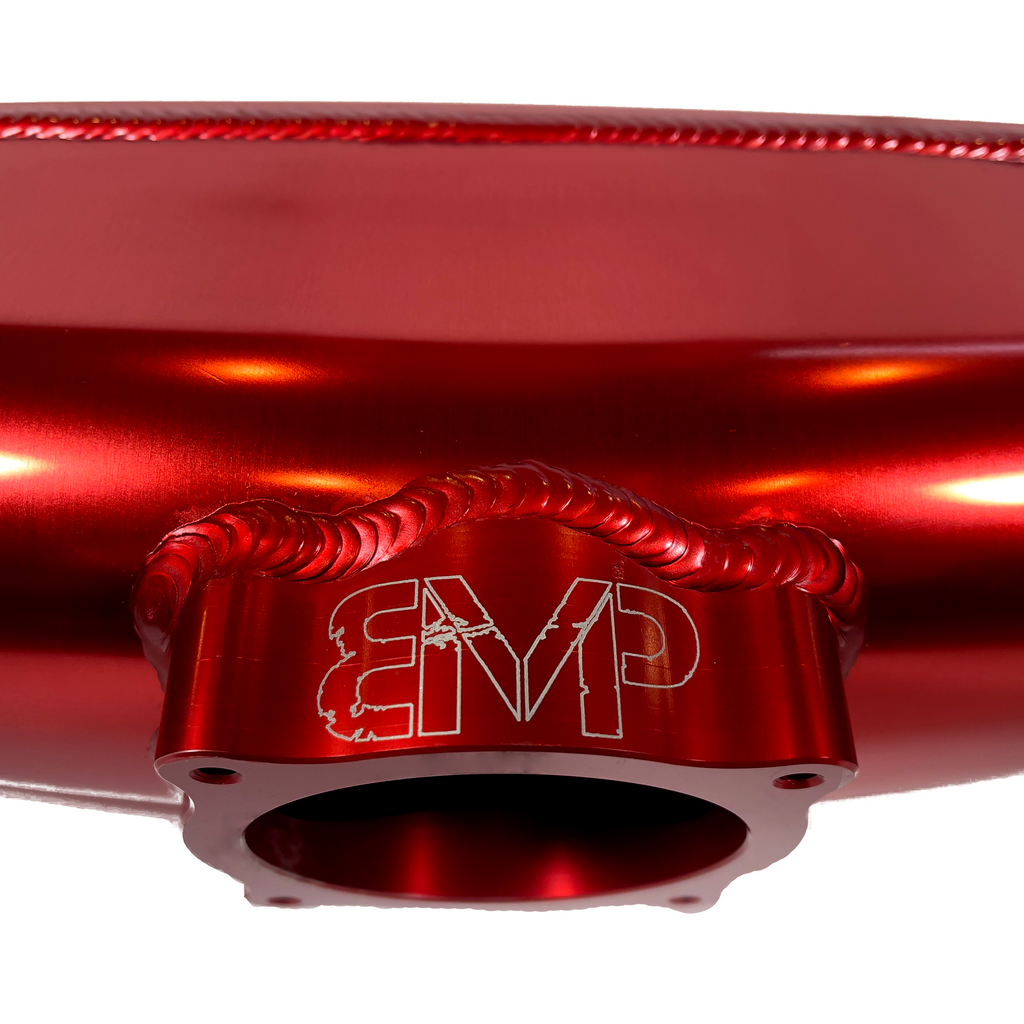

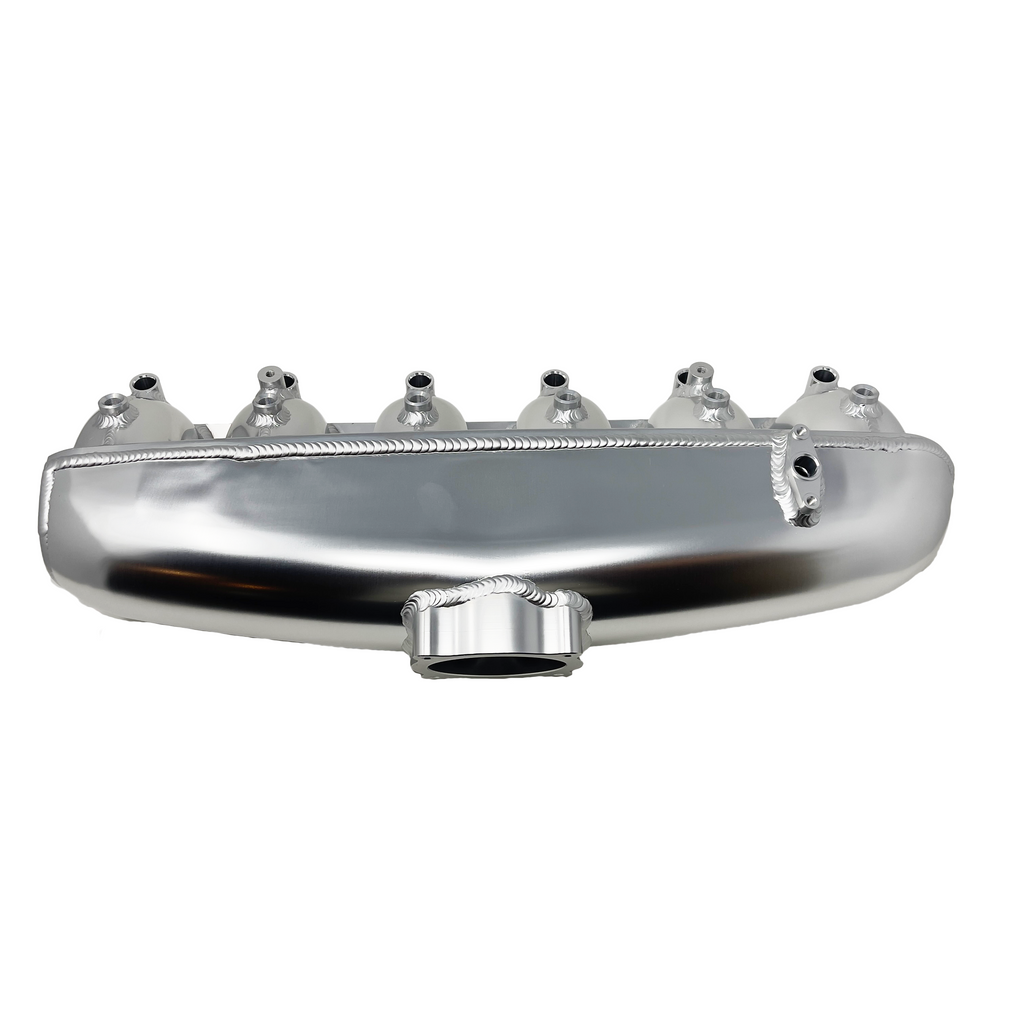

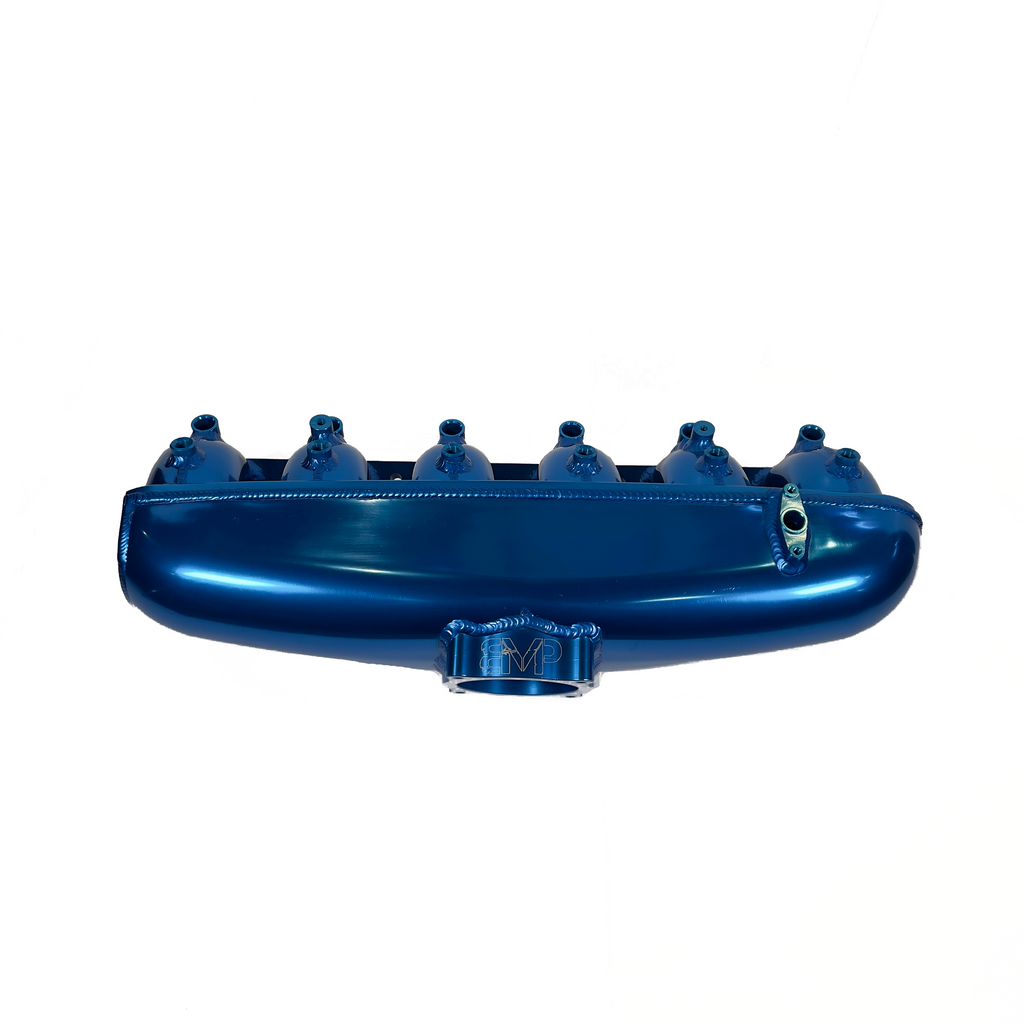

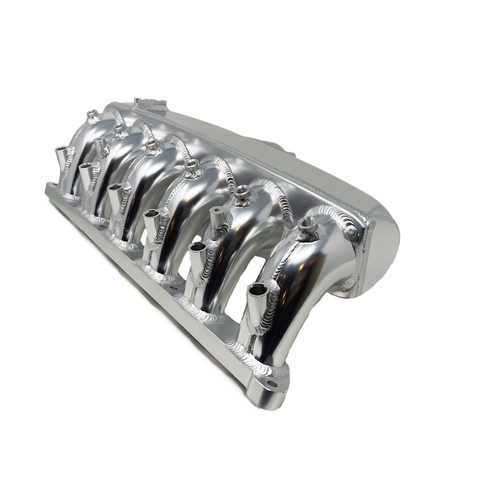

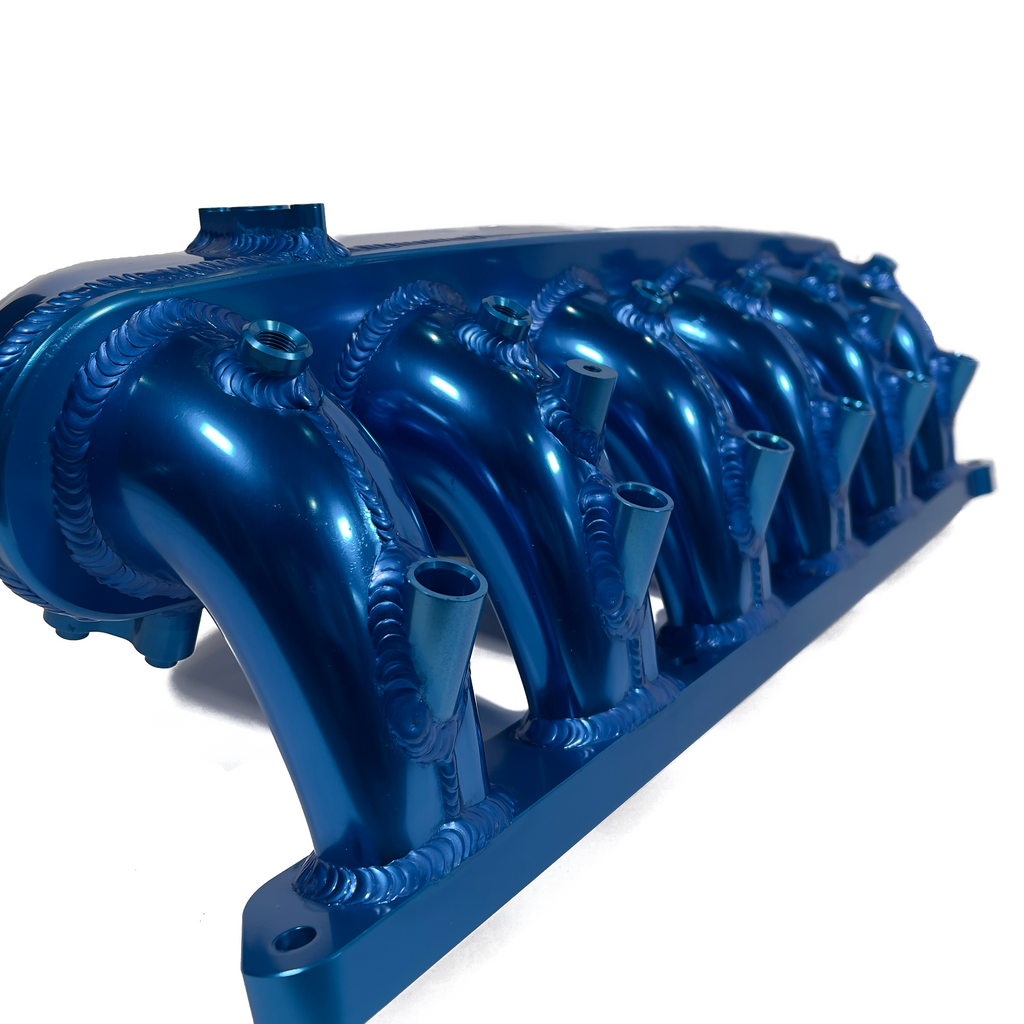

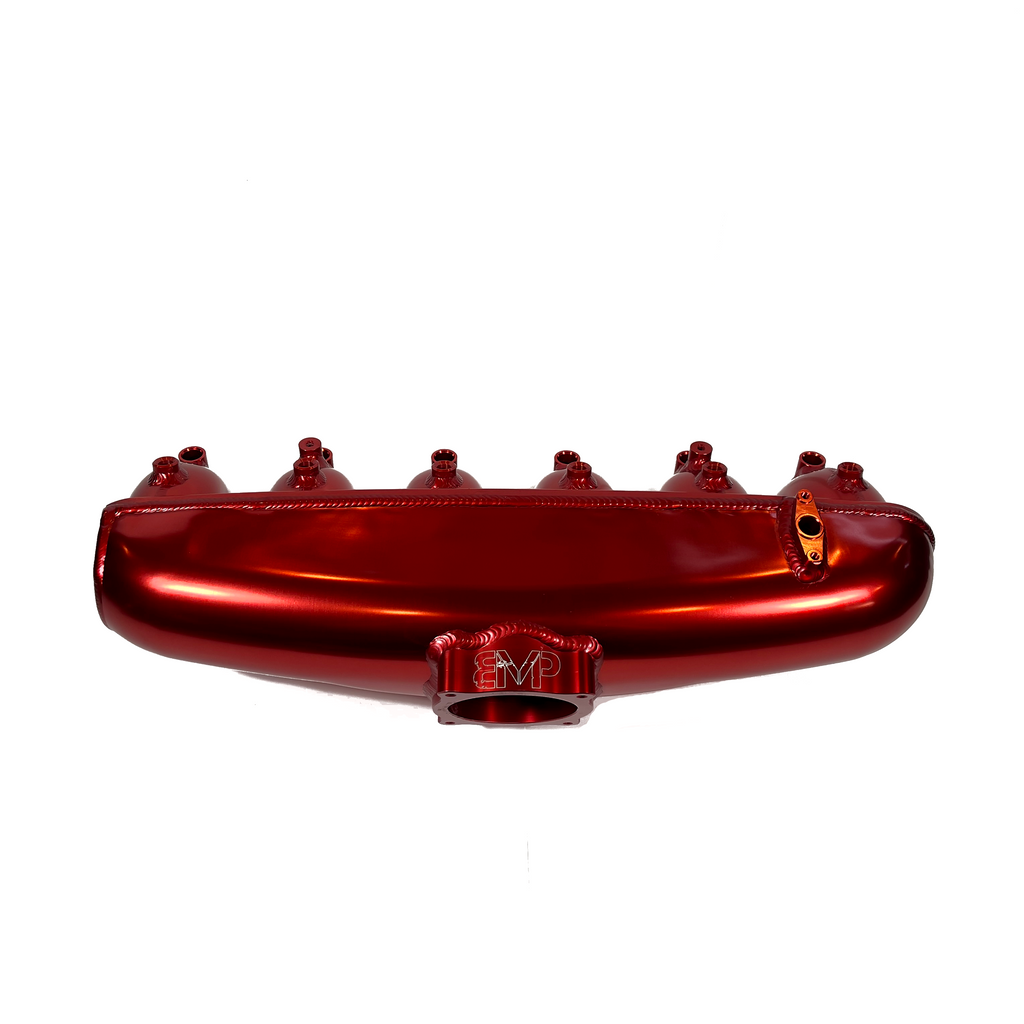

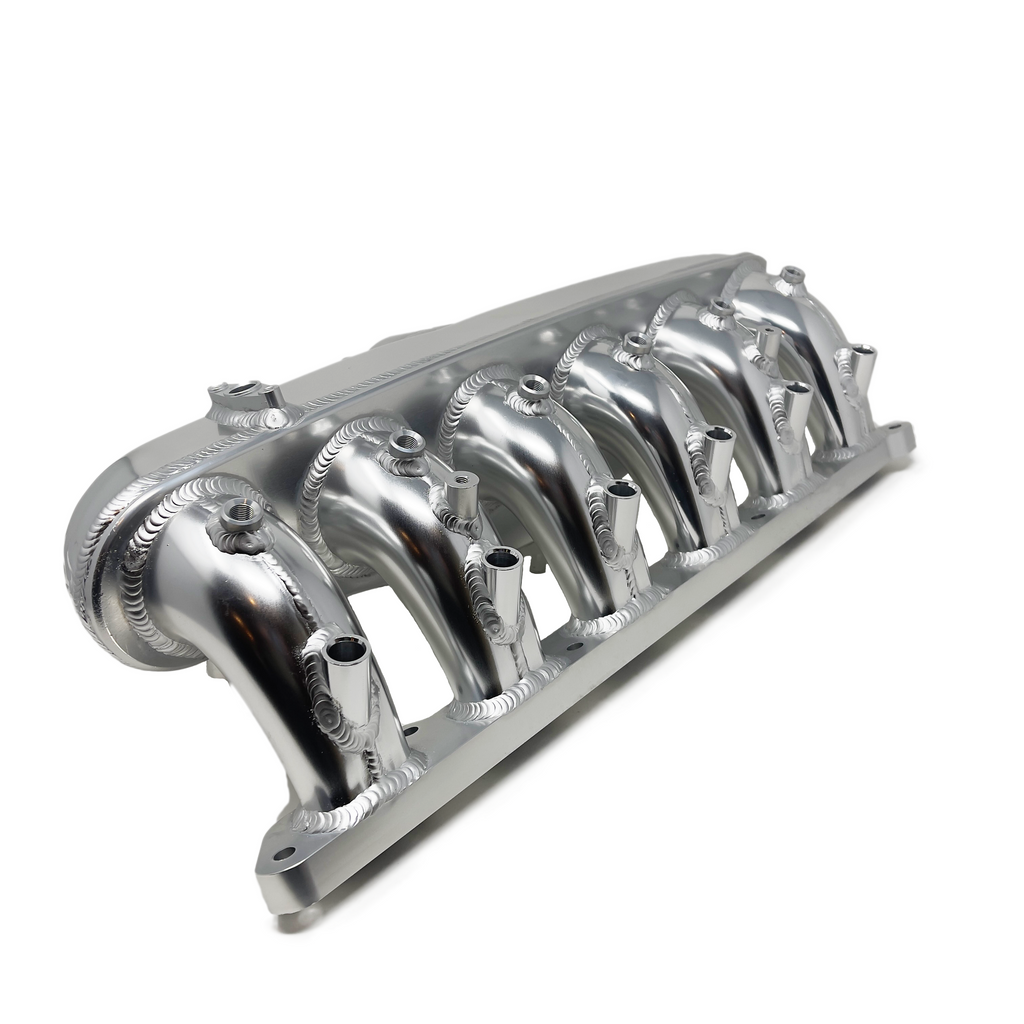

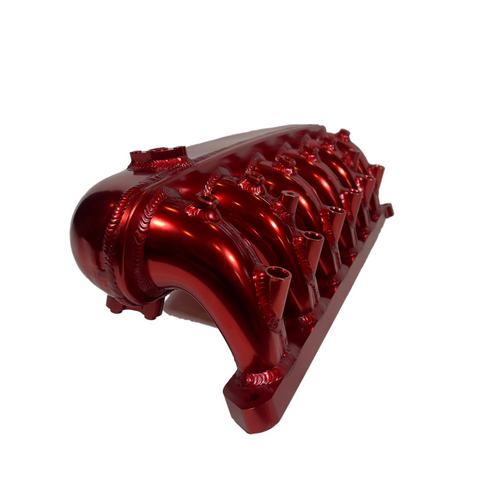

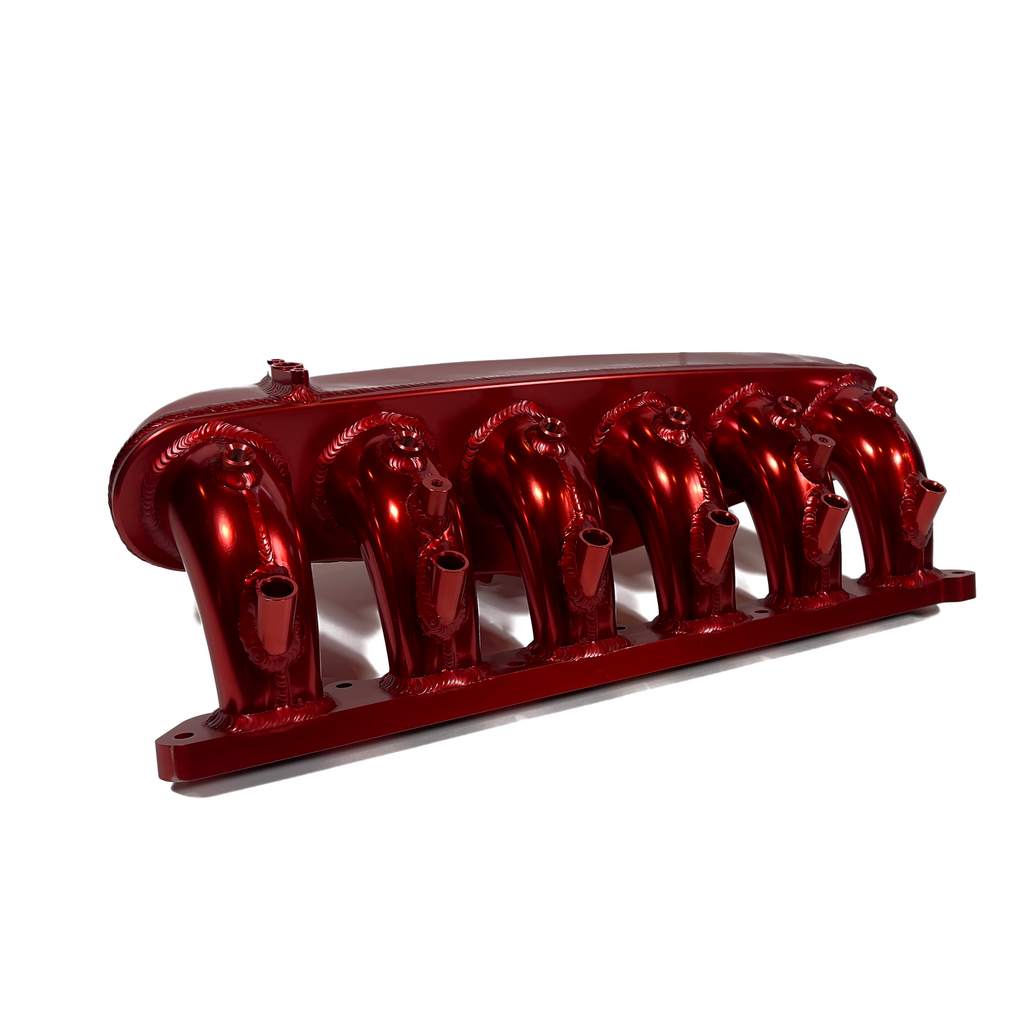

  • This listing is the bare manifold with no injectors and no port injection fuel line. Precision Raceworks also sells it configured with 750cc or 950cc Bosch injectors and a top-mount AN6 fuel line, and in blue, red or silver as well as black - all at higher prices. Contact us if you want a configured manifold.
  • Price is for the manifold only; labor is not included.

PART NUMBER

  • 622-0068

VEHICLE APPLICATIONS

Make Model Chassis Engine Years
BMW 135i E82 N54 3.0L Twin Turbo I6 2008–2010
BMW 135i E88 N54 3.0L Twin Turbo I6 2008–2010
BMW 1 Series M E82 N54 3.0L Twin Turbo I6 2011
BMW 335i E90 N54 3.0L Twin Turbo I6 2007–2010
BMW 335i E92 N54 3.0L Twin Turbo I6 2007–2010
BMW 335i E93 N54 3.0L Twin Turbo I6 2007–2010
BMW 335i xDrive E90 N54 3.0L Twin Turbo I6 2009–2010
BMW 335i xDrive E92 N54 3.0L Twin Turbo I6 2009–2010
BMW 335is E92 N54 3.0L Twin Turbo I6 2011–2013
BMW 335is E93 N54 3.0L Twin Turbo I6 2011–2013
BMW 335xi E90 N54 3.0L Twin Turbo I6 2007–2008
BMW 335xi E92 N54 3.0L Twin Turbo I6 2007–2008
BMW 535i E60 N54 3.0L Twin Turbo I6 2008–2010
BMW 535i xDrive E60 N54 3.0L Twin Turbo I6 2009–2010
BMW 740i F01 N54 3.0L Twin Turbo I6 2011–2012
BMW 740Li F02 N54 3.0L Twin Turbo I6 2011–2012
BMW X6 xDrive35i E71 N54 3.0L Twin Turbo I6 2008–2010
BMW Z4 sDrive35i E89 N54 3.0L Twin Turbo I6 2009–2014
BMW Z4 sDrive35is E89 N54 3.0L Twin Turbo I6 2011–2014
