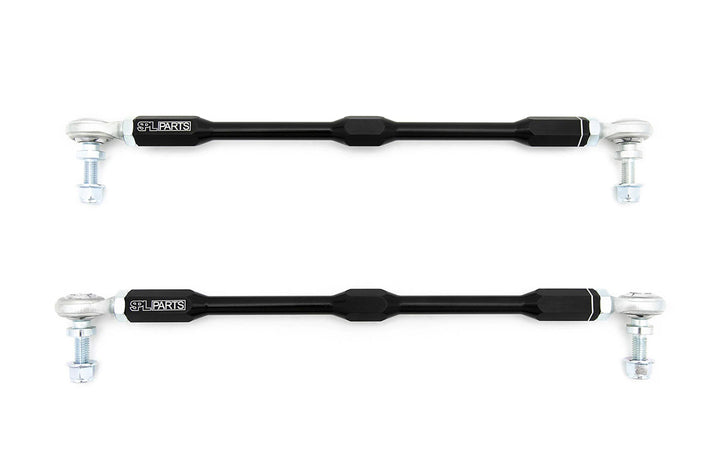

SPL Front Swaybar Endlinks – Toyota GR Supra A90 / BMW Z4 / G8x / G2x / G42

OVERVIEW

SPL Parts PRO Front Endlinks (FE) use massive Teflon lined FK 1/2" bearings to give the highest load capacity for use with stiffer aftermarket sway bars. Custom heat treated chromoly high misalignment studs connect to the sway bar and offer extreme articulation capability of 65 degrees, which prevents the endlink from binding when different adjustment holes on an aftermarket bar are used.

The endlinks are length adjustable so preload can be taken out of the sway bars — preload that results from uneven settling of springs or uneven suspension heights after corner weighting. Black anodized 6061-T6 aluminum turnbuckles work with left and right hand threaded rod ends for simple, precise adjustment. These endlinks suit street and race applications alike.

SPECS

• Teflon lined FK 1/2" spherical bearings for high load capacity with stiff aftermarket bars
• Custom heat treated chromoly high misalignment studs
• 65 degrees of articulation to prevent binding
• Length adjustable to eliminate sway bar preload
• Black anodized 6061-T6 aluminum turnbuckles
• Left and right hand threaded rod ends for simple, precise adjustment
• Suited to street and race use
• Sold as a pair (one pair per vehicle)
• Made in the USA

PARTS INCLUDED

• Two SPL Parts adjustable front swaybar endlinks with FK bearings, chromoly high misalignment studs and aluminum turnbuckles
• Complete kit as supplied by SPL Parts; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• None required to run the part. SPL specifies no additional hardware beyond what is supplied.
• Corner weighting is recommended for track use, and the endlinks should be set to zero preload afterwards.
• Professional installation is recommended; endlinks are a safety-critical suspension component.
• These endlinks also create swaybar-to-arm clearance for the SPL Front Lower Control Arms Toyota Supra GR A90 / BMW Z4 G29.

Installation

• SPL Parts SPL FE G29 front endlinks — installation instructions (PDF)

Notes

• BEFORE PURCHASING — if you have aftermarket shocks or coilovers: many aftermarket coilover manufacturers move the upper swaybar mount away from the OEM location. Check the distance between the swaybar and the shock mount and confirm it is still OEM length. If it is not, measure the length you think you need to within half an inch and call or email us before purchasing so we can get you the correct part. SPL cannot confirm fitment with aftermarket shocks and coilovers.
• This part fits the Toyota GR Supra A90 and BMW Z4 G29 only. SPL also lists these as replacing OEM part numbers 31 30 6 886 279 / 31 30 6 886 360 (BMW) and 48820-WAA01 / 48820-WAA02 (Toyota).

PART NUMBER

• SPL FE G29
