SPL Rear Upper Camber Arms – BMW E8X / E9X / F2X / F3X / F8X

OVERVIEW

SPL Parts TITANIUM Series Rear Upper Arms (RUA) greatly increase the range of rear camber adjustment for high performance street and track use, and are a must on lowered cars that need to meet alignment specification. The factory eccentric washer simply does not have enough range to bring rear camber back into spec once a car is lowered, and on the E8X / E9X the stock spot-welded sheet metal arms flex under load. The E8X / E9X and F8X kits replace both the rear guide (traction) links and the camber (wishbone) arms; the F2X / F3X kit replaces the upper camber arms.

Gun drilled, black anodized 2024 aluminum links combine with 6061-T6 aluminum 360-degree rotating clamps and blue anodized titanium socket head cap screws, so a single 3/16" allen key is all that is needed to lock down alignment settings — no jam nuts, no fighting bearing orientation. Custom three-piece FK rod ends made in Connecticut use a chemically bonded PTFE liner for quiet, low-friction, bind-free articulation that eliminates bushing deflection under hard cornering, acceleration and braking.

SPECS

• Greatly increased rear camber adjustment range over the OEM eccentric washer
• Gun drilled, black anodized 2024 aluminum links
• 6061-T6 aluminum 360-degree Rotating Clamp design
• Blue anodized titanium socket head cap screws
• Tapered stainless steel knuckle mount spacers (E9X / F8X)
• Low friction three-piece Teflon-lined FK rod ends; PTFE liner rated −65°F to 325°F
• Adjustment requires only a 3/16" allen key
• E9X and F8X kits: four arms per car (guide links and camber arms); F3X kit: one pair of upper camber arms
• Made in the USA

PARTS INCLUDED

• SPL Parts rear upper arms with rotating clamps, titanium hardware and FK rod ends (four arms for E9X / F8X, one pair for F2X / F3X)
• Tapered stainless steel knuckle mount spacers where applicable
• Complete kit as supplied by SPL Parts; see the installation instructions for the full bill of materials

TECH RESOURCES

Additional Parts Required

• Four-wheel alignment after installation — mandatory. Rear camber and toe both change when these arms are fitted.
• Professional installation is recommended; these are safety-critical suspension components.
• Corner weighting is recommended for track use.
• A 3/16" allen key is required to lock the rotating clamps; the installer supplies this.
• To use the full camber range on a lowered car, pair these with adjustable rear toe links: SPL Rear Toe Links – BMW E8X / E9X / F2X / F3X or, for the F8X, the SPL Rear Toe Links – BMW M3 / M4 (F8x / G8x).

Installation

• SPL Parts SPL RUA F8X rear upper arms — installation instructions (PDF)
• SPL Parts SPL RUA E9X rear upper arm links — installation instructions (PDF)
• SPL Parts SPL RUA F3X rear upper arms — installation instructions (PDF)

Notes

• The G8X M2 / M3 / M4 version is listed separately: SPL Rear Upper Arms – BMW M3 / M4 (G8x).
• Spherical bearings transmit more road noise and vibration into the cabin than the rubber bushings they replace. This is normal for this type of part.
• Price is for parts only; labor and alignment are not included.
• Confirm your exact model, chassis code and drivetrain with Speed Logic before ordering.

PART NUMBER

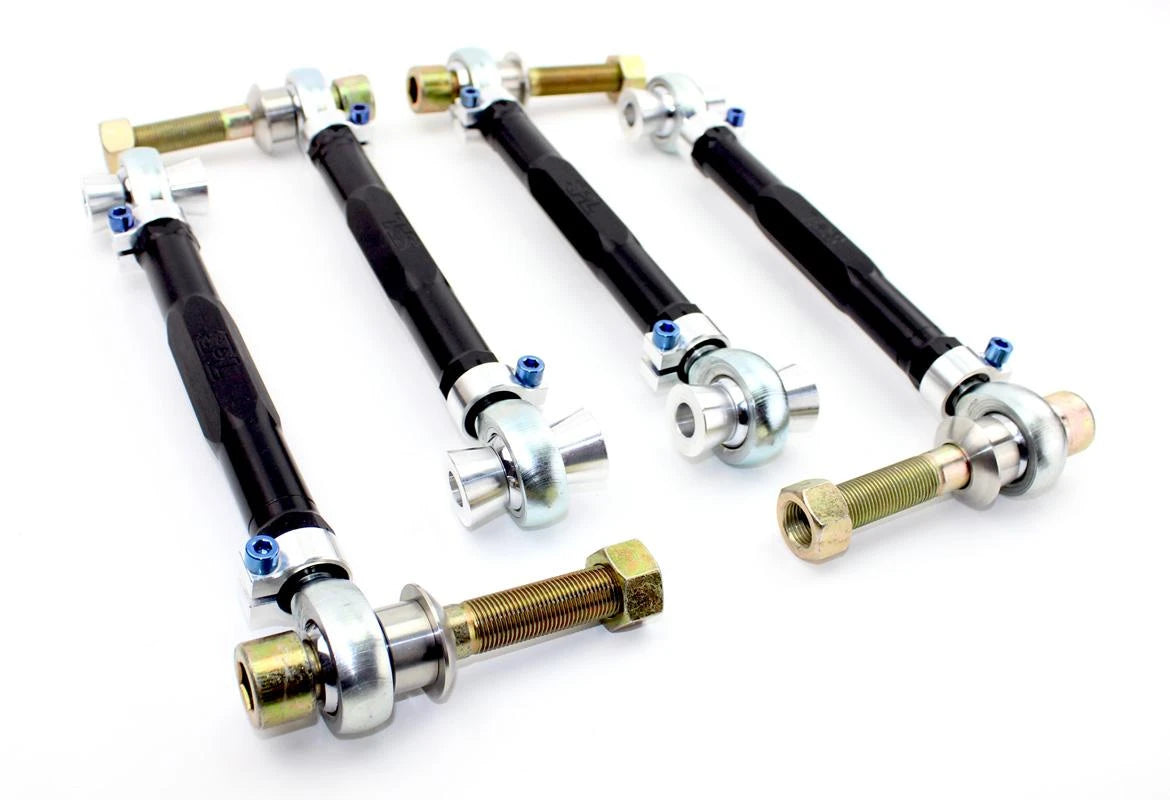

• SPL RUA F8X — F80 M3, F82 / F83 M4, F87 M2 (four arms)

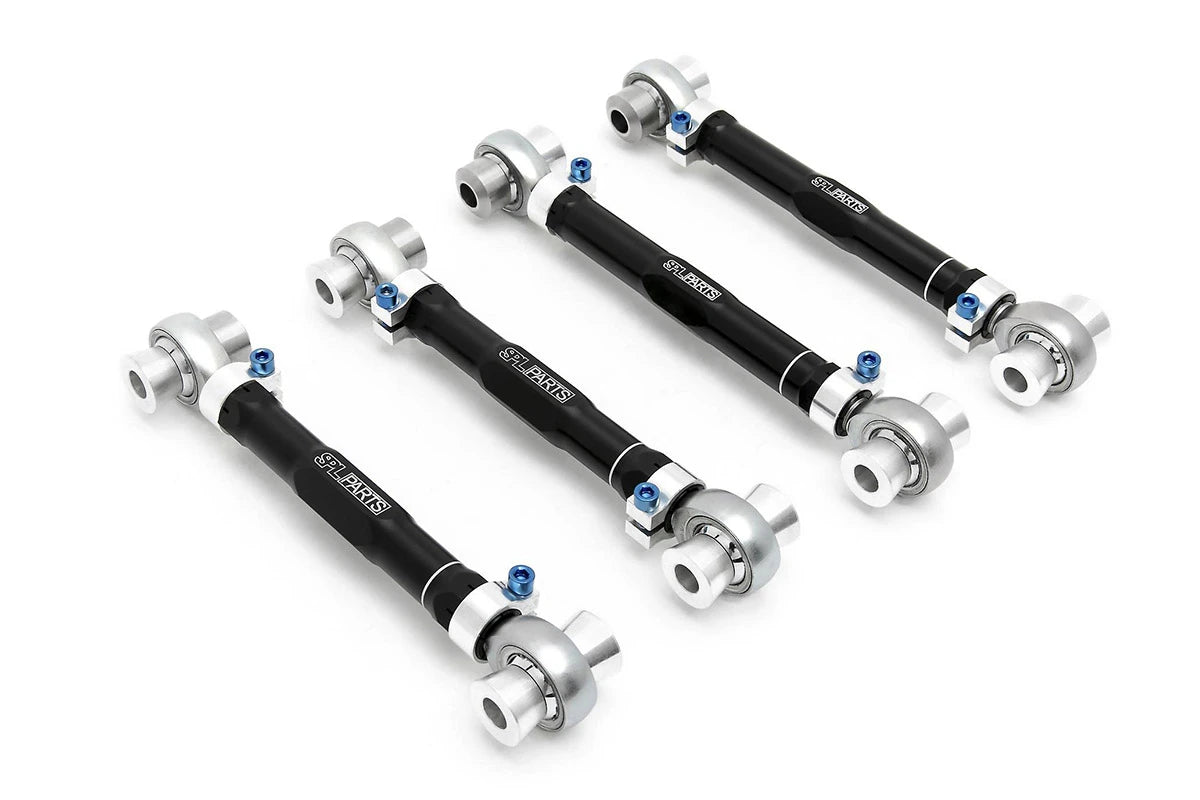

• SPL RUA E9X — E82 / E88 135i and 1M, E90 / E92 / E93 335i (four arms)

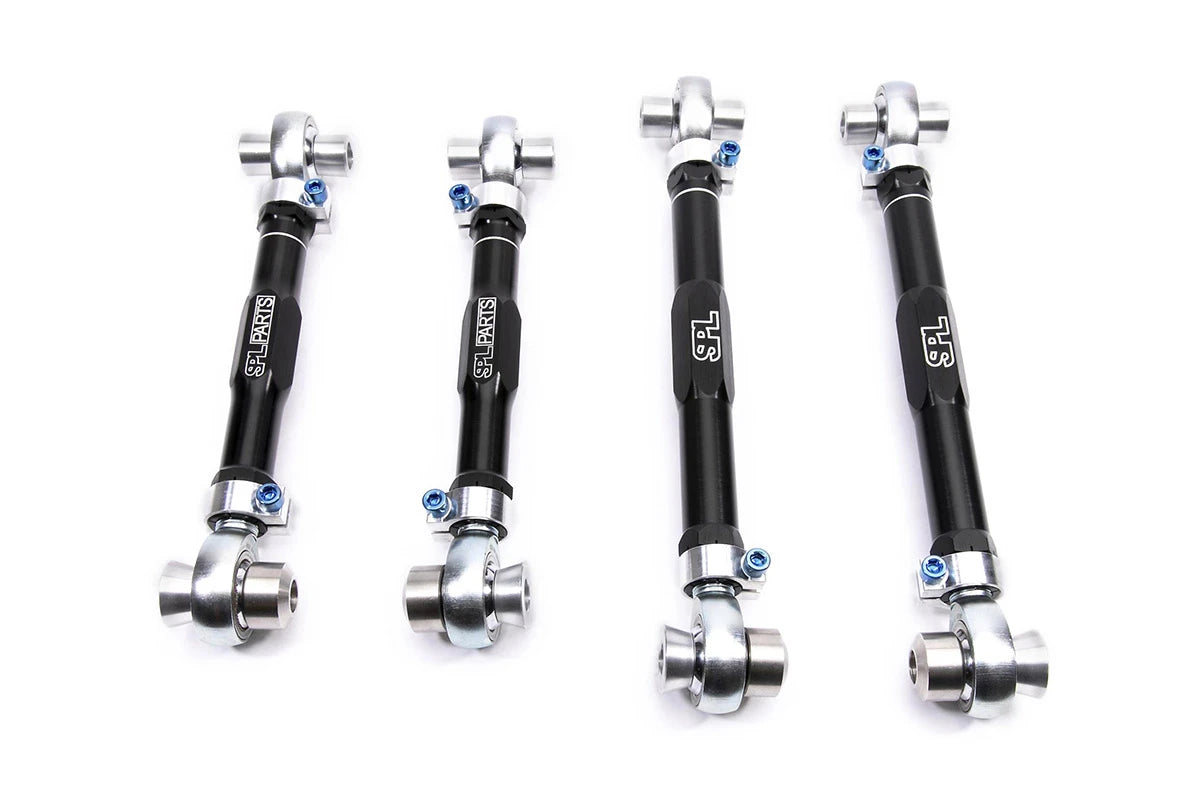

• SPL RUA F3X — F2X / F3X 2, 3 and 4 Series (one pair)
