Bootmod3 FlexFuel Kit High-Flow – Toyota GR Supra A90/A91 / BMW Z4 G29

OVERVIEW

The bootmod3 FlexFuel Kit – High Flow makes getting the required flex fuel hardware onto your BMW or A9X Supra straightforward, in your own driveway. The kit is entirely plug and play with the factory vehicle harness — no cutting or splicing of OEM wiring or connectors. It installs in minutes and can be removed without a trace on the car.

bootmod3 designed the Flow Optimized Flex Fuel Sensor Adapter (FFSA) in SolidWorks so that fuel flow is unobstructed and adds no pressure drop at full fuel pump flow from the tank to the motor. That matters when pushing the factory fuel system with the power ethanol can provide over gasoline. The sensor housing is designed to install neatly into the factory BMW fuel hat location.

Install the kit, flash a flex fuel enabled bootmod3 OTS MultiMap or custom map, and the alcohol/gasoline blend percentage in your tank is handled automatically — no re-flashing between fills.

SPECS

• Custom 3-piece Aluminum-6061 flex fuel sensor adapter with built-in sensor bypass for obstruction-free fuel flow, sized to fit the vehicle factory fuel hat area below the rear seat
• Flow optimized design: no added pressure drop at full fuel pump flow
• All connecting points sealed with fuel-safe Viton o-rings
• Flex fuel sensor adapter housing provides two additional 1/8 NPT ports for an optional fuel pressure sensor on vehicles without a factory one, supporting bootmod3 CustomROM v2. Depending on fitment, either port can be used.
• CANBUS-enabled Ethanol Content Analyzer (ECA) that integrates with bootmod3 CustomROM for a complete, seamless FlexFuel conversion
• Works with bootmod3 flex fuel enabled OTS MultiMaps and with custom tunes from your bootmod3 tuner of choice
• Power/CANBus 4-wire plug-and-play harness — 100% plug and play to the BMW fuel controller connectors (EKP3) on S55 and N55 vehicles, and to the Body Domain Controller (BDC/FEM) connector on Gen1 F-series B48/B58
• Custom, kink-free teflon braided line allows plug-and-play installation with the OEM fuel hat and factory 5/16" or 3/8" fuel feed line — no cutting and no new lines required
• Uses a Continental flex fuel sensor
• Fully reversible and removable, back to stock without a trace, in minutes
• Saves 4+ hours in time and cost compared with kits that require custom fuel lines, fittings and custom wiring

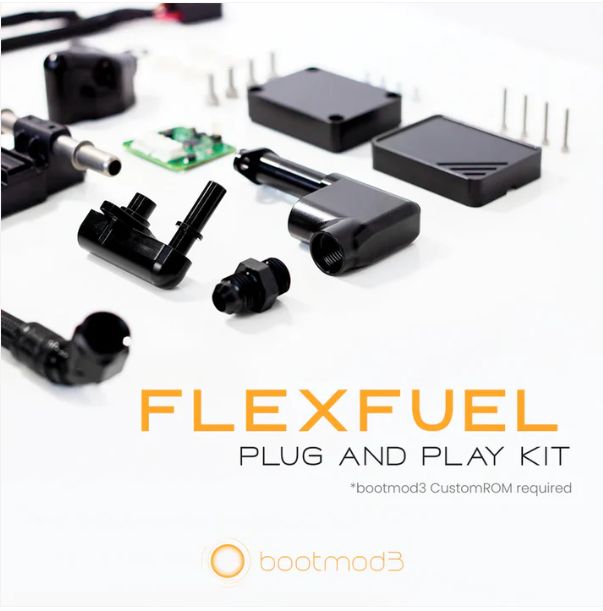

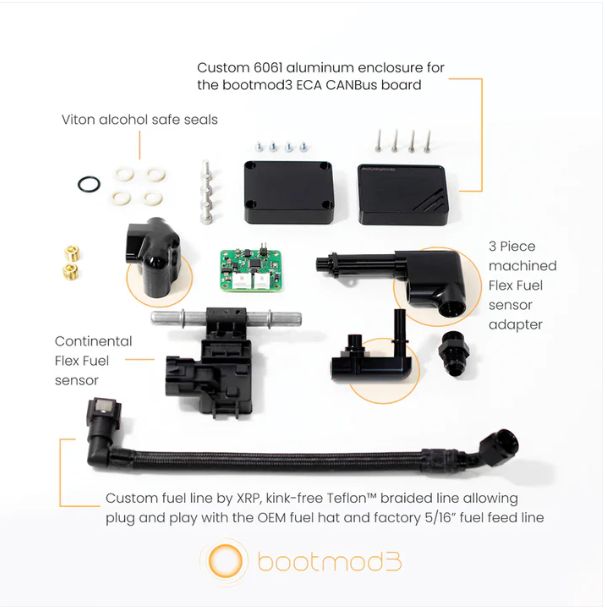

PARTS INCLUDED

• Custom 3-piece Aluminum-6061 flex fuel sensor adapter (FFSA) with built-in sensor bypass
• Continental flex fuel sensor
• Flex fuel sensor 3-wire harness
• CANBUS-enabled Ethanol Content Analyzer (ECA) board
• Custom Aluminum-6061 CANBus enclosure for the bootmod3 ECA board
• Power/CANBus 4-wire plug-and-play harness
• Custom, kink-free teflon braided line
• -6 AN fitting by Racetronix
• Fuel-safe Viton o-rings

TECH RESOURCES

Additional Parts Required

• A flex fuel enabled bootmod3 tune license. The hardware does nothing without a flex fuel enabled bootmod3 OTS MultiMap or custom map. For the Supra, see the BOOTMOD3 A90 A91 Toyota Supra B58 Engine Tune. For the BMW Z4 M40i, see the BOOTMOD3 B58 Engine Tune.
• A means of flashing the tune — an OBD-to-Ethernet (ENET) cable with a Windows or macOS laptop running Google Chrome, or a bootmod3 OBD WiFi Adapter with the iOS / Android app. Speed Logic does not currently stock a standalone ENET cable.
• E85 or ethanol-blended fuel. The kit only measures and reports ethanol content — you supply the fuel.
• Optional: an auxiliary fuel pressure sensor, if you want to use the two 1/8 NPT ports in the adapter housing for bootmod3 CustomROM v2 fuel pressure support. Not included.
• Basic hand tools supplied by the installer, plus rear seat removal to access the factory fuel hat. No cutting, splicing or fabrication is required.

Installation

• bootmod3 Flex Fuel Kit installation instructions (official bootmod3 wiki, with vendor install videos)
• bootmod3 v3.0 User Manual (official bootmod3 wiki)
• bootmod3 help center and full documentation index (official bootmod3 wiki)

Notes

• bootmod3 does not publish an official part number for this kit and no SKU is recorded against this listing, so no part number is shown. This is an OEM fuel hat location kit intended for the OEM fuel pump and associated wiring; any variation to fuel lines or fuel pumps may not be compatible. bootmod3 also offers this kit for F-series S55/N55/B48/B58 and for the G-series S58 — those are covered by separate Speed Logic listings, including the Bootmod3 G-Series S58 FlexFuel Kit – High Flow. Confirm fitment with Speed Logic if your vehicle is not listed above.
