Evolution Racewerks Charge Pipe Kit (HKS BOV) – BMW Z4 sDrive35i / 35is E89 N54

OVERVIEW

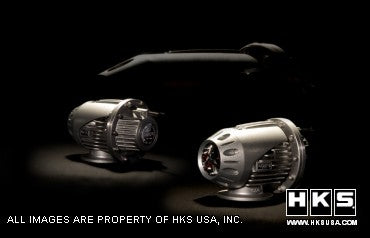

The Evolution Racewerks Charge Pipe Kit with HKS SSQV4 BOV (Silver) brings the company's most popular N54 charge pipe design to the E89 Z4 sDrive35i and 35is, with a CNC machined HKS blow-off valve flange in place of the factory diverter valve mounts. The kit is available flange-only (no BOV) or with the valve included: choose the HKS SSQV4 BOV in Silver or Black, or the HKS Race BOV.

The pipe is made from lightweight high grade 6061 aluminum and is throttle body matched at 3".

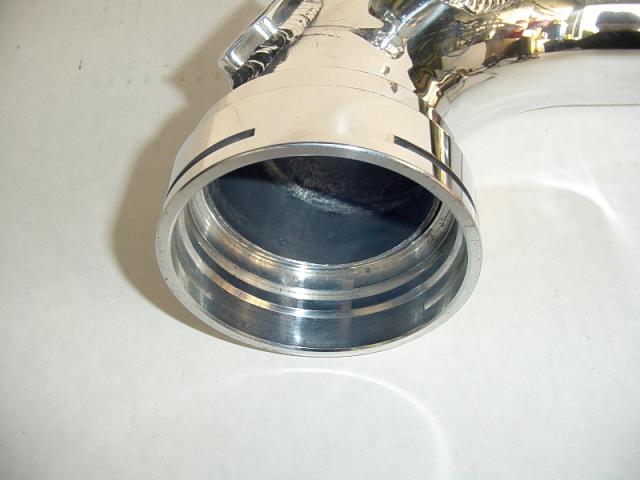

The throttle body connection reproduces the factory design: an o-ring inside a precision CNC machined flange locked by a c-clip, rather than a silicone hose and clamp. A CNC machined MAP sensor flange keeps that connection leak free, and beaded pipe ends with T-bolt clamps stop the intercooler piping coming off under boost.

SPECS

• Lightweight high grade 6061 aluminum piping
• Throttle body matched 3" piping
• Retains the factory style o-ring throttle body lock flange
• Precision CNC machined throttle body flange for a leak free connection and quick removal and installation
• Precision CNC machined MAP sensor flange for a leak free connection
• Beaded ends with T-bolt clamps so the intercooler piping cannot blow off under boost

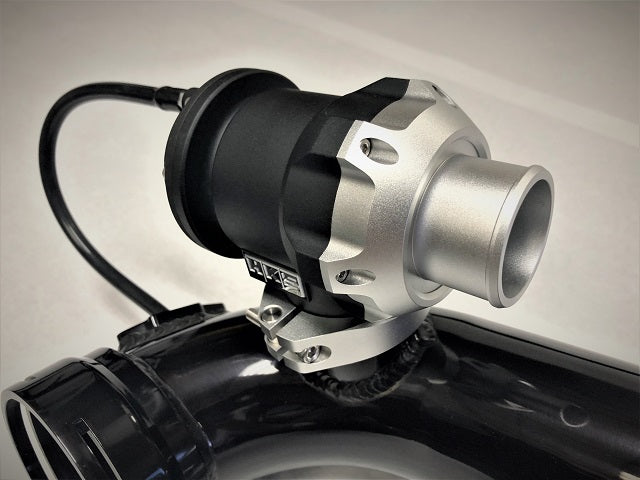

• CNC machined HKS blow-off valve flange
• Available as a flange-only version (no BOV) or with the valve included: HKS SSQV4 BOV in Silver or Black, or the HKS Race BOV
• Pressure tested to 25 PSI in Evolution Racewerks testing
• Finishes: brush, mirror polish, or optional Type III hard black anodizing for a stealth OEM look; hard anodizing also hardens the aluminum against denting
• Made in the USA
• Warranty: Evolution Racewerks Limited Lifetime Warranty.

PARTS INCLUDED

• Charge pipe with HKS blow-off valve flange
• Selected HKS valve (SSQV4 Silver, SSQV4 Black or Race BOV), valve-included versions only
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• Blow-off valve (required): a blow-off valve is needed. Choose a version with a valve included (HKS SSQV4 BOV in Silver or Black, or the HKS Race BOV), or select "HKS SSQV4 BOV Flange Only (No BOV)" to use your own valve, such as the HKS Super Sequential Blow-Off Valve 4 (SSQV4).

Installation

• Evolution Racewerks does not publish an installation guide or video for this part.
• Contact Speed Logic for installation support or fitment questions.

Notes

• Also available for factory-style diverter valves: Evolution Racewerks Charge Pipe Kit – BMW Z4 (N54) – Factory Style Diverter Valves
• Also available with a TIAL Q blow-off valve: Evolution Racewerks Charge Pipe Kit (TIAL BOV) – BMW Z4 sDrive35i / 35is E89 N54

PART NUMBER

• BM-ICP005PHH — Polish Finish, with HKS SSQV4 BOV (Silver)
• BM-ICP005SHH — Brush Finish, with HKS SSQV4 BOV (Silver)
• BM-ICP005BHH — Type III Hard Anodized Black, with HKS SSQV4 BOV (Silver)
• BM-ICP005SHHB — Brush Finish, with HKS SSQV4 BOV (Black)
• BM-ICP005PHHB — Polish Finish, with HKS SSQV4 BOV (Black)
• BM-ICP005BHHB — Type III Hard Anodized Black, with HKS SSQV4 BOV (Black)
• BM-ICP005SHHR — Brush Finish, with HKS Race BOV
• BM-ICP005PHHR — Polish Finish, with HKS Race BOV
• BM-ICP005BHHR — Type III Hard Anodized Black, with HKS Race BOV
• BM-ICP005PH — Polish Finish, HKS SSQV4 BOV flange only (no BOV)
• BM-ICP005SH — Brush Finish, HKS SSQV4 BOV flange only (no BOV)
• BM-ICP005BH — Type III Hard Anodized Black, HKS SSQV4 BOV flange only (no BOV)
