OVERVIEW

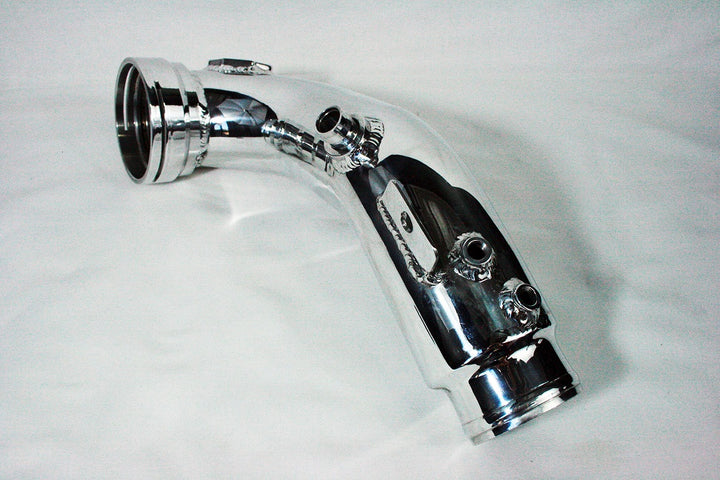

The Evolution Racewerks Charge Pipe replaces the factory soft plastic charge pipe on the N55 single-turbo engine, a component that is prone to breaking under high boost. The ER pipe is mandrel bent from lightweight, high-grade 6061 aluminum and sized at 3 inches to match the throttle body.
A precision CNC machined throttle body flange retains the factory-style o-ring lock, giving a leak-free connection and the same quick connect and disconnect as stock. That is a better arrangement than the silicone hose and clamp joints used by most other aftermarket diverter valve pipes. A CNC machined MAP sensor flange keeps that connection leak free as well, and the pipe remains compatible with the factory electronic diverter valve.
SPECS
- Material: high-grade 6061 aluminum, mandrel bent
- Piping diameter: 3", throttle body matched
- Precision CNC machined throttle body flange retaining the factory-style o-ring lock
- Precision CNC machined MAP sensor flange for a leak-free sensor connection
- Compatible with the factory electronic diverter valve
- Beaded pipe ends with T-bolt clamps to prevent the piping from blowing off under boost
- Silicone hump hose included
- Finish options: brushed, polished, or optional Type III hard black anodizing for a stealth/OEM appearance
- Type III hard anodizing improves durability and resists bent or dented piping
- All hardware for a complete installation is included
- Warranty: Evolution Racewerks Limited Lifetime Warranty
PARTS INCLUDED
- 6061 aluminum charge pipe
- Silicone hump hose
- T-bolt clamps
- All hardware required for complete installation, as supplied by Evolution Racewerks
TECH RESOURCES
Additional Parts Required
- None. Evolution Racewerks specifies no additional hardware for this part; the factory electronic diverter valve is reused and all mounting hardware is supplied.
- Optional companion part: Evolution Racewerks N55 Lower Intercooler Charge Pipe (LIC) for 535i/640i, or the Lower Intercooler (LIC) Charge Pipe Kit – X5 / X6 35i for X5/X6 — add it for full metal hard piping from the intercooler to the throttle body.
Installation
- Evolution Racewerks does not publish a downloadable installation guide for this charge pipe. It installs in the factory location using the retained o-ring lock flange and the supplied hardware.
- Contact Speed Logic for installation support or fitment questions.
Notes
- Fitment below follows Evolution Racewerks' published application data. If your car is not listed, confirm fitment with Speed Logic before ordering.
PART NUMBER
- BM-ICP009SA — Charge pipe kit, brush finish
- BM-ICP009PA — polish finish
- BM-ICP009BA — Type III hard anodized black
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | 535i | F10 | N55 3.0L Turbo I6 | 2011–2016 |
| BMW | 535i xDrive | F10 | N55 3.0L Turbo I6 | 2011–2016 |
| BMW | 640i | F06 / F12 / F13 | N55 3.0L Turbo I6 | 2012–2016 |
| BMW | 640i xDrive | F06 / F12 / F13 | N55 3.0L Turbo I6 | 2011–2016 |
| BMW | X5 xDrive35i | F15 | N55 3.0L Turbo I6 | 2014–2018 |
| BMW | X6 xDrive35i | F16 | N55 3.0L Turbo I6 | 2015–2019 |
