OVERVIEW
The Racing SQV is HKS's large-capacity blow-off valve for high-power and large-displacement turbo engines. It is built around a single 51 mm valve — big enough to dump a lot of air quickly on big-turbo builds.

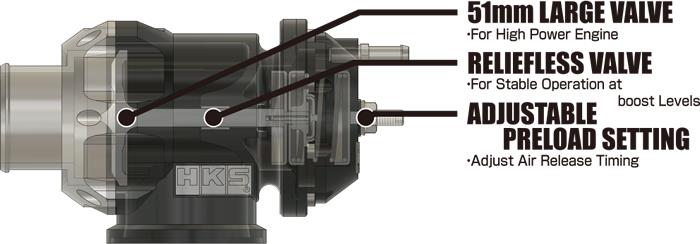

Most blow-off valves need their spring preload set for each car: too soft and the valve leaks boost at high pressure, too firm and it won't open at low boost. The Racing SQV uses HKS's original three-chamber, relief-less design instead. As boost rises, pressure in the chamber pushes the valve harder closed, so it stays sealed at any boost level and still opens cleanly on throttle lift. Preload is adjustable to fine-tune release timing, and HKS durability-tested the design to over a million cycles to minimize the chance of the valve sticking.
A weld-on installation flange is included. Note that it is a different size from the flange used by the Super SQV4.
SPECS
- Valve size: 51 mm single valve
- Structure: HKS three-chamber, relief-less design — no leaking at high boost
- Adjustable preload for release timing
- Durability tested to over 1,000,000 operations
- Weld-on flange included (Racing SQV size — not interchangeable with the Super SQV4 flange)
- Made in Japan

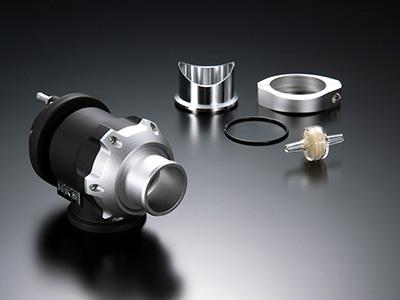

PARTS INCLUDED
- Racing SQV valve assembly
- Weld-on installation flange
- HKS installation manual
TECH RESOURCES
- Required extras: the supplied flange must be welded to your charge pipe by a fabricator, and you will need hose and a boost/vacuum reference line to suit. Piping and hose are not included.
- Installation manual (HKS): 71008-AK004 Racing SQV installation manual (PDF)

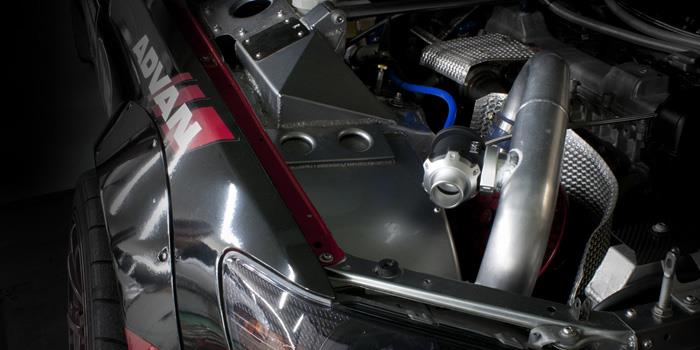

- Installation notes: professional installation recommended. Weld the flange to the charge pipe, mount the valve, connect the reference line and set preload per the manual.
- Looking for the classic SQV sound and size? See the HKS Super SQV4 Universal 71008-AK001 or the Black Edition 71008-AK005.
- No CARB EO is published — off-road / competition use only in California.
- Price is for the item only; labor is not included.
PART NUMBER
- 71008-AK004 — HKS Racing SQV Universal Assembly
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Universal | High-power and large-displacement turbocharged vehicles | Universal | Turbocharged gasoline | Universal |
