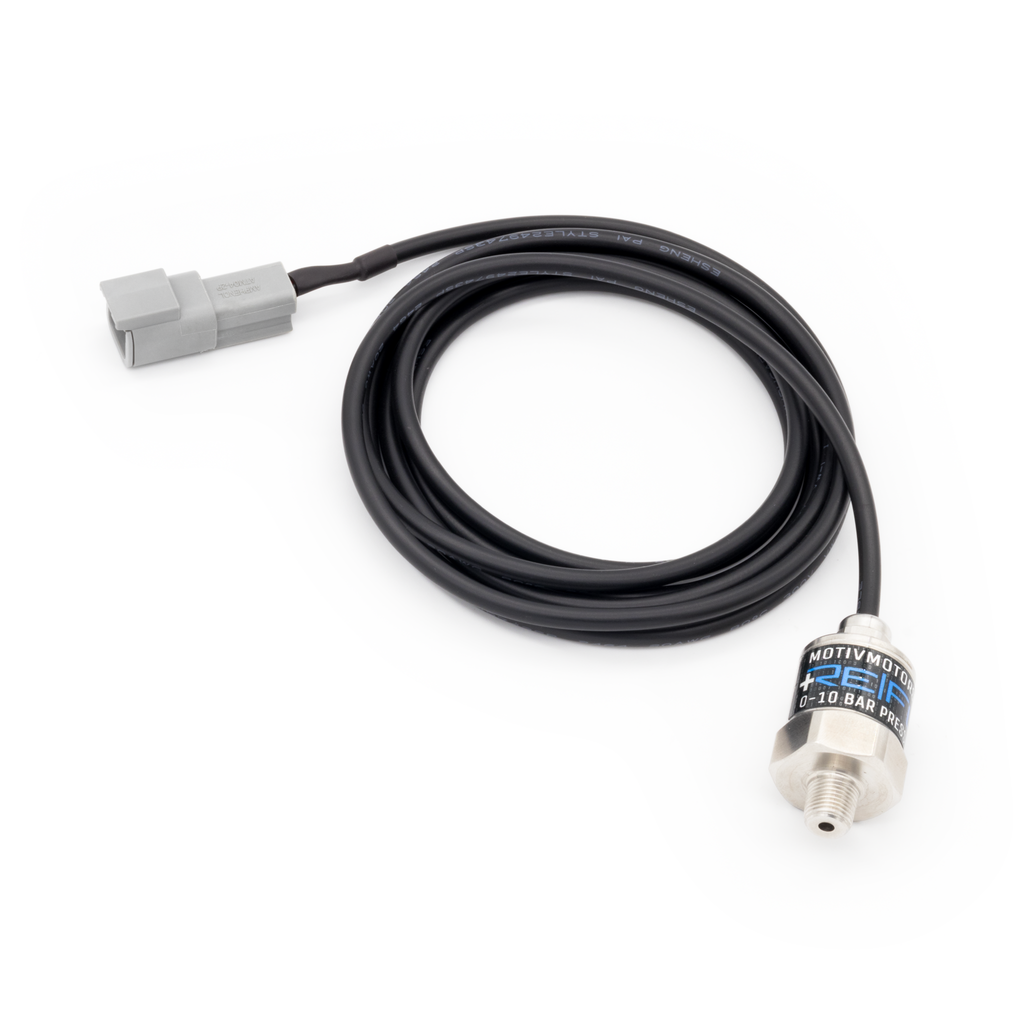

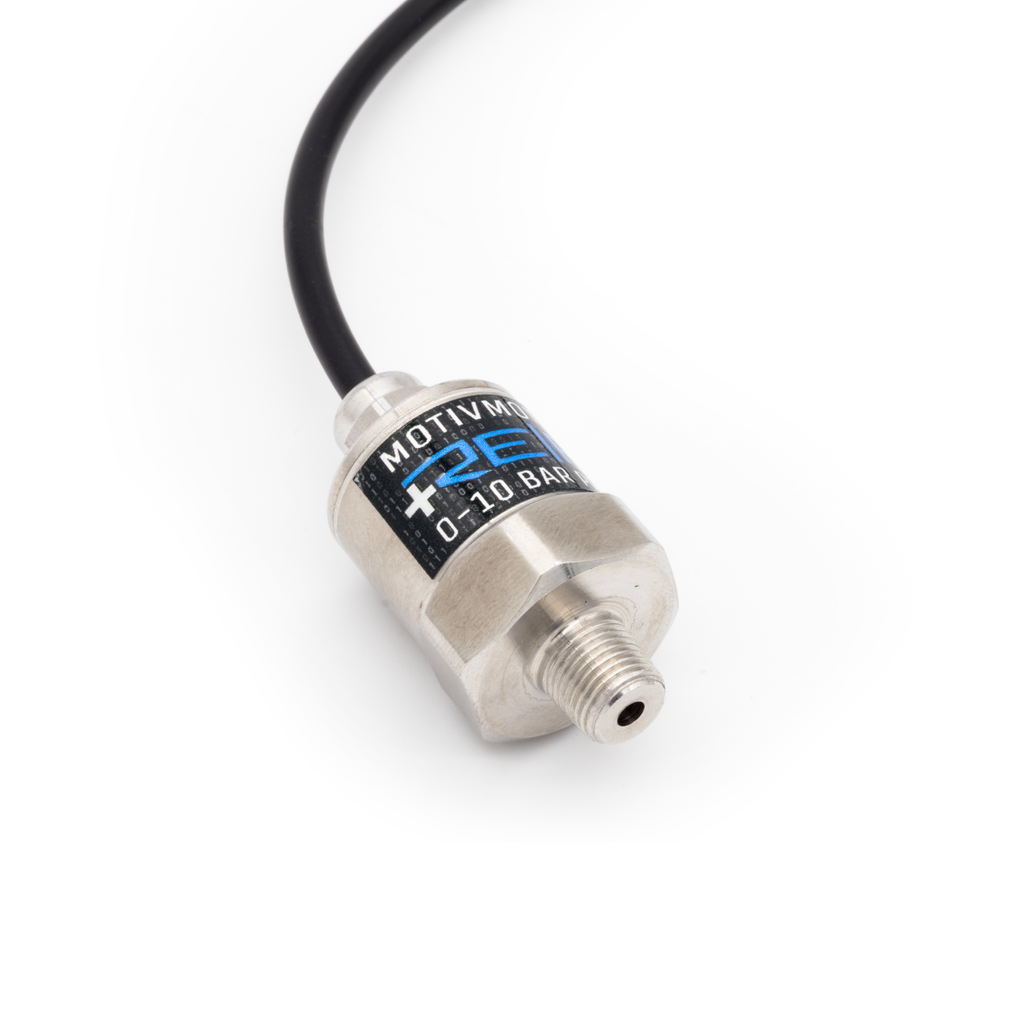

MOTIV ReFlex+ 0-10 Bar Pressure Sensor – 2-Pin DTM Plug-n-Play

OVERVIEW

The MOTIV ReFlex+ 0-10 Bar Pressure Sensor measures fluid and air pressure and is terminated with a 2-pin DTM connector for direct plug-and-play connection to the ReFlex+ harness. On many flash platforms it is integrated over CAN Bus to supply fuel pressure to both the ECU and the ReFlex+, and it can equally be used for boost, coolant, oil and a variety of other fluids. Each ReFlex+ can integrate two of these sensors at a time.

SPECS

• Range: 0-10 bar
• Connector: 2-pin DTM, plug-n-play with the ReFlex+ harness
• Media: fuel, boost/air, coolant, oil and other fluids
• Up to two sensors per ReFlex+

PARTS INCLUDED

• (1) 0-10 bar pressure sensor with 2-pin DTM connector

TECH RESOURCES

Additional Parts Required

• A MOTIV ReFlex+ kit — Inline-6, Inline-4, V8 or BMW B58/S58 Plug-n-Play.
• For fitting on an ethanol sensor: a 3/8" female to 3/8" male SAE quick-disconnect adapter with 1/8" NPT port. For a factory fuel line: a 5/16" female to 5/16" male SAE quick-disconnect adapter with 1/8" NPT port. Adapters and ethanol sensor sold separately.

Installation

• MOTIV Fuel Pressure Sensor Input Guide (support.motivmotorsport.com)
• MOTIV ReFlex+ Installation Guide and User Manual, Rev 10.01 (PDF)
• Professional installation recommended.
• Request an Install Appointment

Notes

• Ethanol sensor not included.
• Price is for the item selected only; labor is not included.

PART NUMBER

• 900.1024
