Öhlins EDC Cancellation Kits – BMW F & G Chassis, Z4 G29 & Toyota GR Supra

OVERVIEW

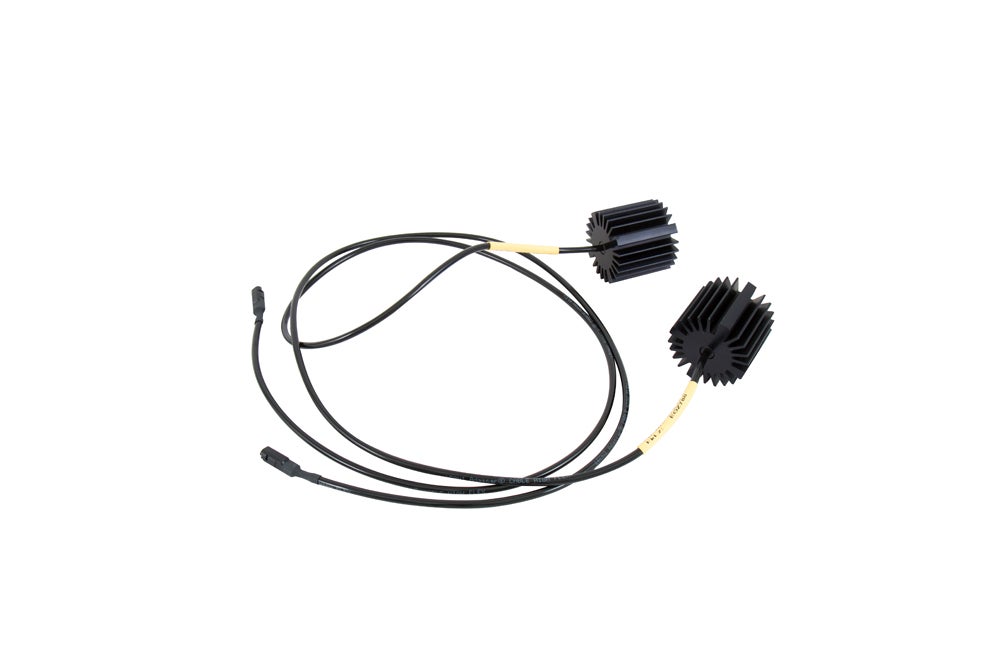

BMW factory dampers with Electronic Damper Control (EDC / Adaptive M Suspension) are monitored by the car's electronics. Unplug them for a set of mechanical coilovers and the car will log faults and light the dash. The Öhlins EDC Cancellation Kit plugs into the original suspension connectors and deactivates the control lamps and error reports when the electronically adjustable OEM suspension is replaced by a mechanical system. No further programming is needed.

The kit is designed for Öhlins' Road & Track coilover systems and is available in different configurations tailored to each chassis. It is a companion part — it does not replace the dampers themselves.

SPECS

• Plug-in cancellation units for the factory EDC damper connectors; no coding or programming required
• Deactivates EDC warning lamps and error reports when mechanical dampers are fitted
• Chassis-specific connectors and harness routing per part number
• Includes the brackets, screws, lock nuts, cable ties and other hardware needed for installation

PARTS INCLUDED

• Cancellation kit (units for each corner as required by the chassis)
• Installation material (if needed)
• Mounting instruction

TECH RESOURCES

Additional Parts Required

• A mechanical (non-EDC) coilover kit (sold separately) — this kit does not replace the dampers. Pairs with the Öhlins Road & Track G8x RWD kit and the Öhlins Road & Track DFV kits.

Installation

• Öhlins 35020-03 Mounting Instructions (PDF)
• Öhlins 35020-30 Mounting Instructions (PDF)
• Öhlins 35020-02 Mounting Instructions (PDF)
• Öhlins 35020-33 Mounting Instructions (PDF)
• Professional installation recommended.
• Request an Install Appointment

Notes

• Select the part number for your chassis: 35020-03 for F-chassis 1 / 2 / 3 / 4 Series; 35020-30 for G-chassis 2 / 3 / 4 Series, Z4 G29 and GR Supra; 35020-02 for F87 M2 / F80 M3 / F82 / F83 M4; 35020-33 for G87 M2 / G80 / G81 M3 / G82 / G83 M4 (RWD and xDrive).
• Only required on cars fitted with factory electronic dampers (EDC / Adaptive M Suspension).
• Confirm your exact model with Speed Logic before ordering.

PART NUMBER

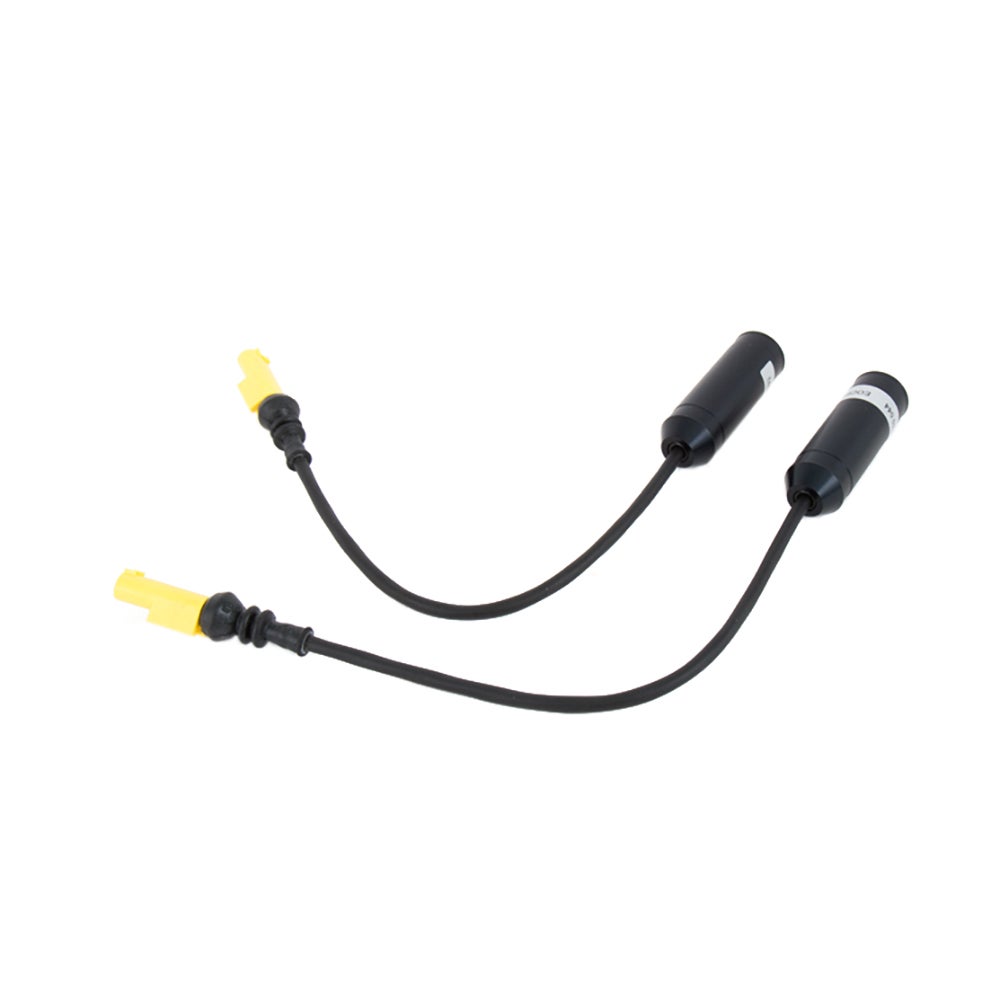

• 35020-03 — BMW 1 / 2 / 3 / 4 Series, F chassis

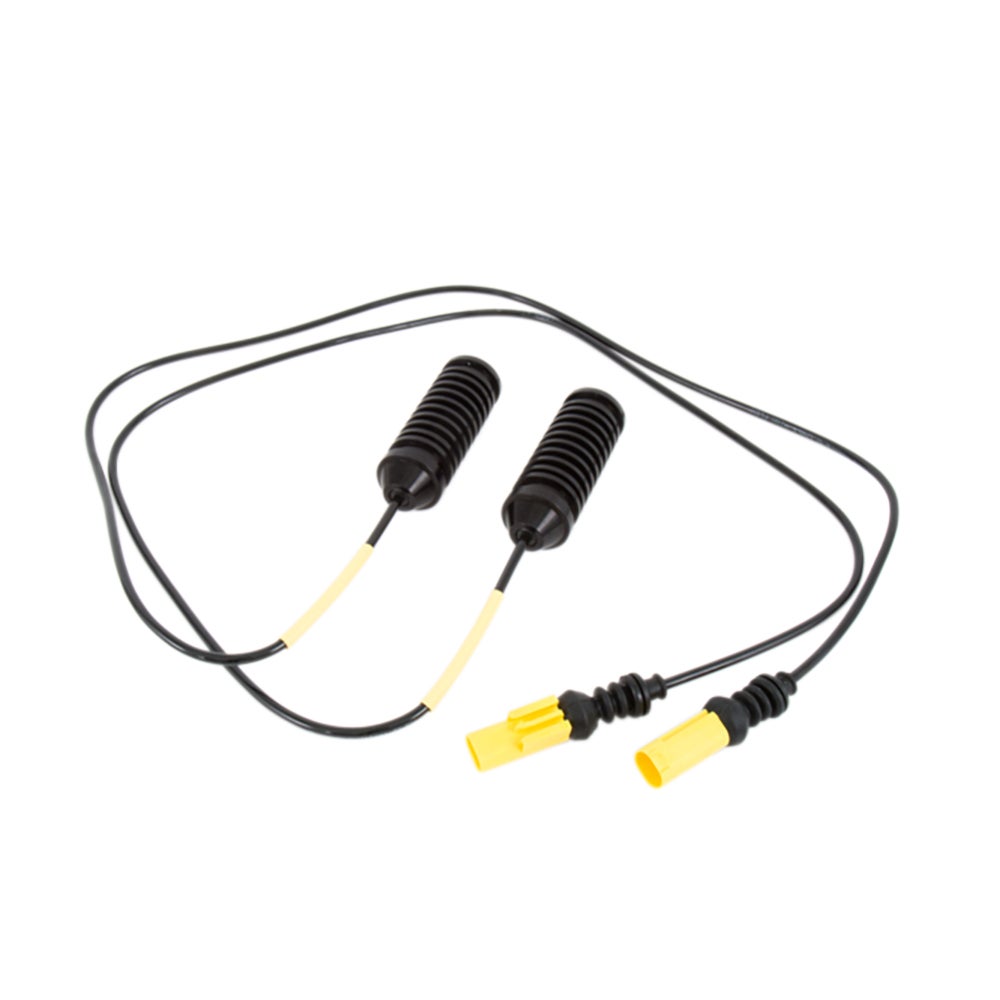

• 35020-30 — BMW 2 / 3 / 4 Series G chassis, Z4 G29 & Toyota GR Supra

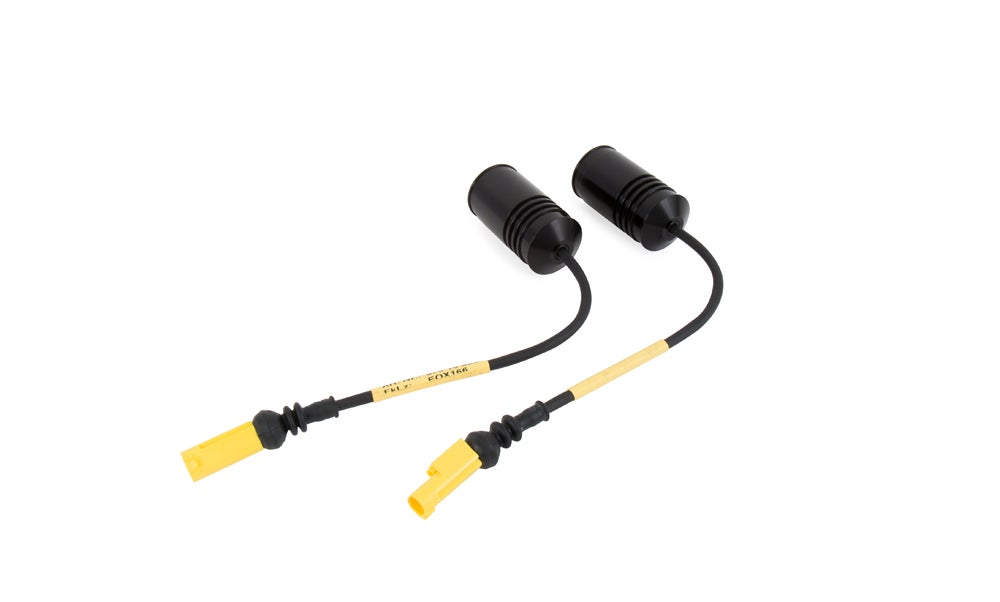

• 35020-02 — BMW M2 F87 / M3 F80 / M4 F82 / F83
• 35020-33 — BMW M2 G87 / M3 G80 / G81 / M4 G82 / G83

VEHICLE APPLICATIONS
