Speed Logic Charge Pipe Kit w/ Tial BOV – BMW 135i / 1M / 335i / 535i (N54)

OVERVIEW

This Speed Logic aluminium chargepipe for the N54 is built with a TiAL blow-off valve flange, so you can run a TiAL Q BOV and get the sound your turbo setup deserves while replacing the failure-prone plastic OEM chargepipe - the stock pipe is known to let go at 15 psi and above, including on tuned cars. The pipe is 3.0" T6-6061 aluminium with CNC billet flanges designed and optimised for flow, TIG hand welded and backpurged with argon, finished in stealth wrinkle black, and it carries two plugged 1/8" NPT bungs for methanol, a Hobbs switch or sensors. All required hardware to replace the factory pipe is included, along with the vacuum line from the intake manifold to the BOV, and custom powder coating is available at additional cost.

SPECS

• 3.0" upgraded aluminium chargepipe
• Manufactured from high grade T6-6061 aluminium
• CNC billet aluminium flanges, CAD/CAM 3D designed for a leak-free connection
• Machined for the TiAL Q blow-off valve (BOV)
• Includes (2) pre-plugged 1/8" NPT bungs for methanol, a Hobbs switch or sensors
• Replaces the factory plastic chargepipe that is prone to failing at 15 psi and higher boost levels
• Removes the flow restriction of the factory chargepipe; increased throttle response and reduced spool time
• Black insulated paint finish; custom powder coat available at additional cost
• TIG hand welded and fully backpurged with 100% argon
• Replaces OEM BMW charge-air duct part number 13717615026
• Fits both Left Hand Drive (LHD) and Right Hand Drive (RHD) vehicles without modification
• LIFETIME warranty against defects and fitment issues

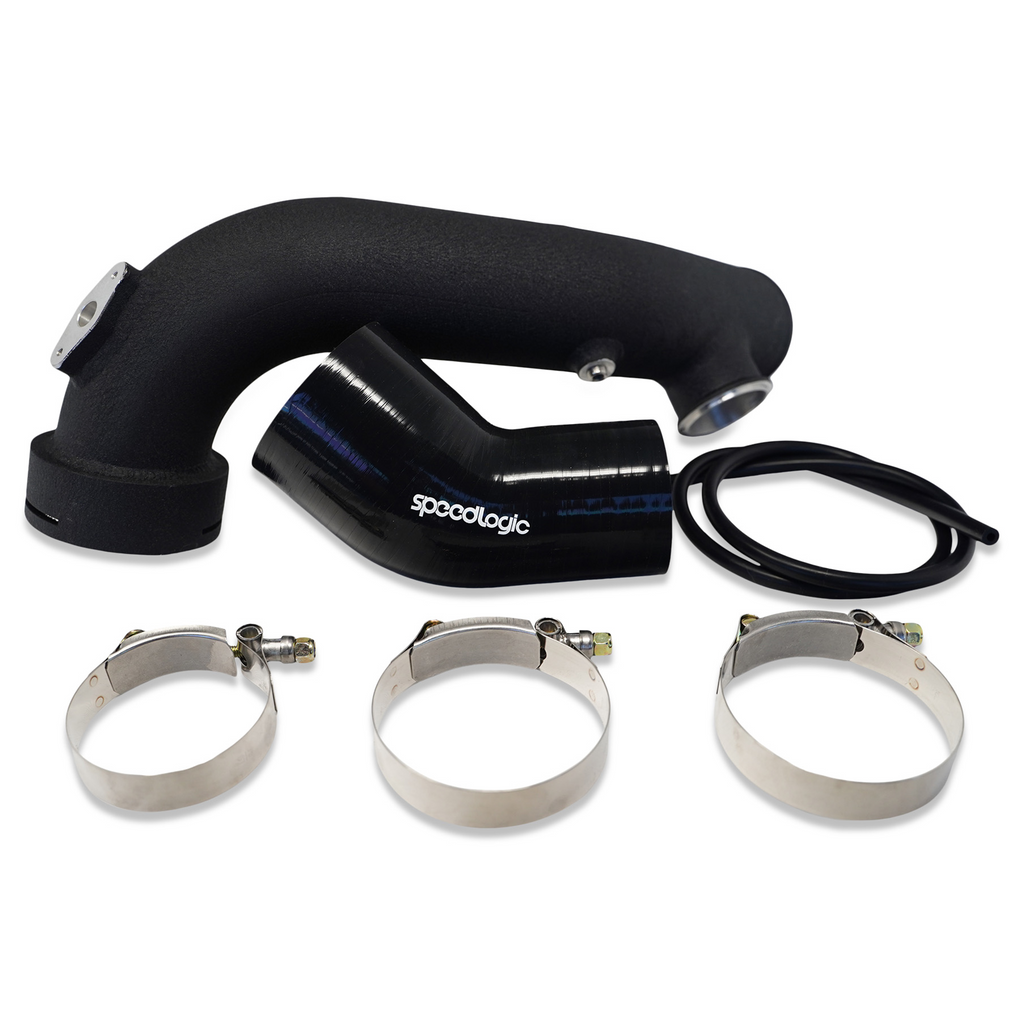

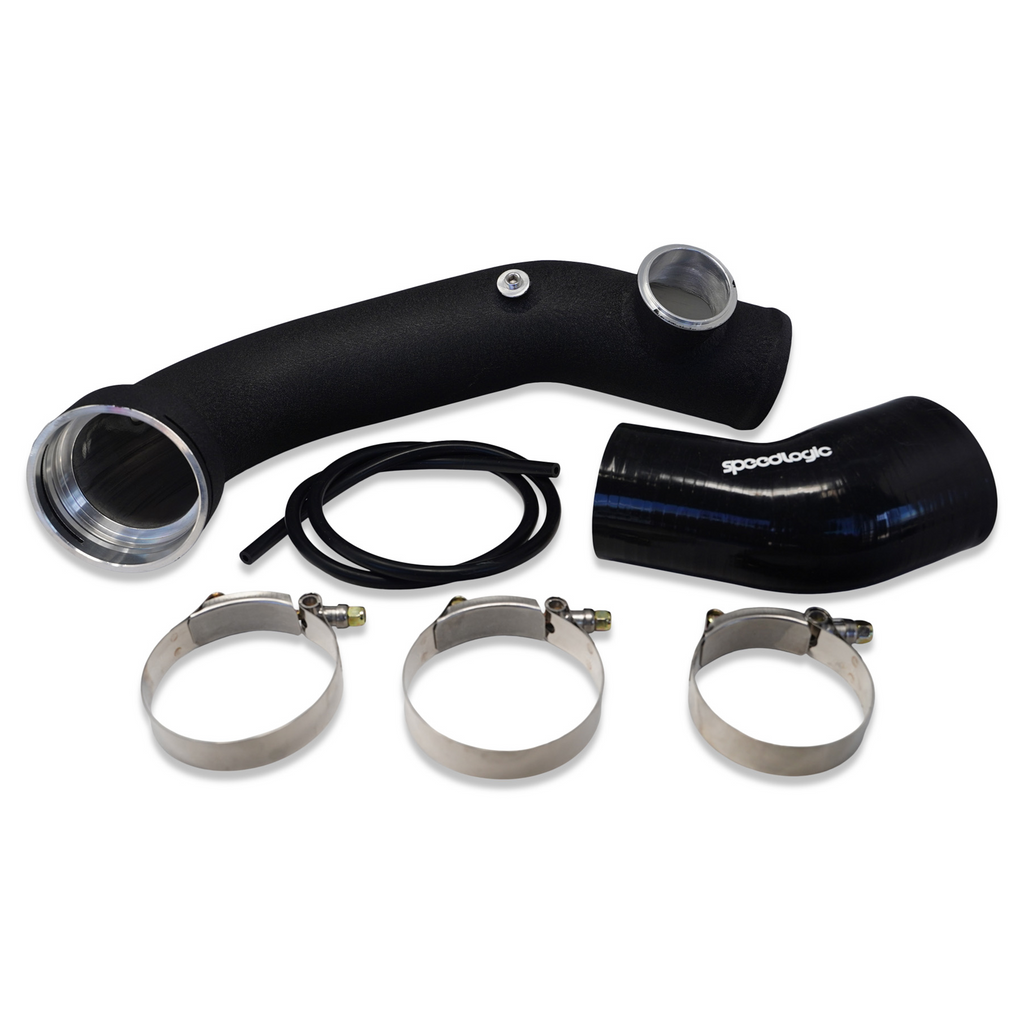

PARTS INCLUDED

• (1) Speed Logic aluminium chargepipe for the N54 engine with TiAL BOV flange
• (1) Silicone coupler
• (2) T-bolt clamps - one 2.5", one 3.0"
• (2) Bolts for the TMAP sensor hardware
• (1) Vacuum line from the intake manifold to the TiAL BOV
• (Optional) TiAL blow-off valve (BOV)

TECH RESOURCES

Required Extras

• A TiAL blow-off valve is required to run this pipe and is only included if you select the optional BOV at checkout: TiAL Sport Q 50mm BOV for BMW N54 (10 PSI spring, Q.10).
• All other hardware needed to replace the factory chargepipe - coupler, T-bolt clamps, TMAP sensor bolts and the BOV vacuum line - is supplied in the box.
• Optional: a tune to take advantage of the added flow - MHD Super License for N54 Engine or the JB4 Tuner for N54 BMW.

Installation

• No installation document is published for this kit. It is a direct replacement for the factory plastic chargepipe using the supplied coupler and clamps, and our team is available to help if you have questions during the fit.

VEHICLE APPLICATIONS

Speed Logic does not publish a part number for this kit, so no part number is listed.
