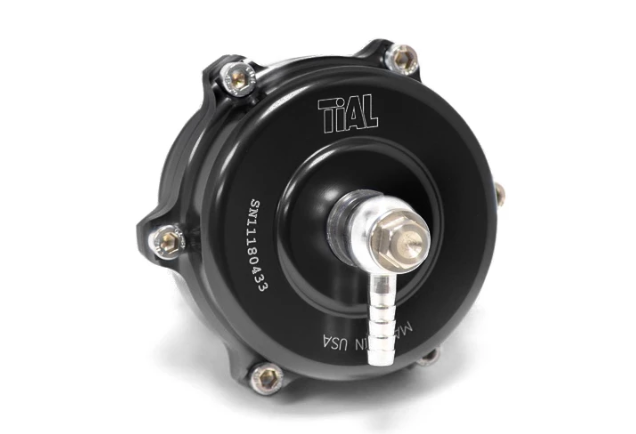

TiAL Sport Q 50mm Blow-Off Valve (10 PSI Spring) – BMW N54

OVERVIEW

The TiAL Sport Q is the first revision of the original TiAL blow-off valve and remains the company's highest-flowing atmospheric valve. It bolts straight onto any standard TiAL V-band flange with no re-welding, so it drops onto a TiAL-flanged charge pipe in minutes. This listing is the black 50 mm Q valve supplied with a 10 psi spring and set up for external (atmospheric) venting.

The Q is built for turbocharged and supercharged applications, including centrifugal superchargers such as Paxton and Vortech. TiAL states that development work made the same size valve flow roughly 60% more than the original design, and that a single Q valve can support up to 1,800 hp.

SPECS

• Valve size: 50.5 mm (1.98 in) poppet — TiAL catalogs the Q Series as a 51 mm valve
• Spring: 10 psi
• Venting: external / atmospheric
• Finish: black anodized
• Body and internals: CNC-machined from 6061 aluminum alloy
• Mounting: aluminum V-band clamp with stainless steel hardware
• Valve seal: clamped Viton O-ring, retained to prevent it sticking to the seat and pulling out
• Valve stem and guide: Teflon-lubricated, hard anodize-coated for wear resistance
• Air fitting: machined aluminum banjo-type fitting and bolt with oversized 10 mm hose barb for quick actuator response
• Diaphragm: high-temperature Nomex-reinforced silicone
• Flow: TiAL rates the Q Series at 219.7 lb/min (2,838 CFM) at 30 psi, full stroke
• Flange compatibility: bolts to any standard TiAL flange without re-welding
• Shipping weight: 2 lb; carton 18 x 7 x 6 in

PARTS INCLUDED

• TiAL Sport Q 50 mm blow-off valve, black, with 10 psi spring installed
• V-band clamp
• TiAL machined aluminum air fitting
• High-pressure O-ring

TECH RESOURCES

Additional Parts Required

• A charge pipe with a TiAL 50 mm V-band flange. The Q valve does not include a weld flange in this configuration. Choose the pipe for your car:
  • Speed Logic Charge Pipe Kit w/ Tial BOV – BMW 135i / 1M / 335i / 535i (N54)
  • Evolution Racewerks Charge Pipe Kit (TIAL BOV) – BMW 135i / 335i N54 2006-2008 Short
  • Evolution Racewerks Charge Pipe Kit (TIAL BOV) – BMW 135i / 335i / 1M N54 2009-2010 Long
  • Evolution Racewerks Charge Pipe Kit (TIAL BOV) – BMW 535i E60 N54
  • Evolution Racewerks Charge Pipe Kit (TIAL BOV) – BMW Z4 sDrive35i / 35is E89 N54
• Vacuum signal line. TiAL specifies 1/4 in (6 mm) inner diameter hose, kept as short as possible and taken from a source downstream of the throttle body.

Installation

• TiAL Sport BOV routing and plumbing guide (PDF)
• TiAL Sport BOV static bench-testing instructions and spring rating chart (PDF)
• TiAL Sport Q BOV product drawing and dimensions (PDF)
• TiAL Sport BOV FAQ (PDF)

Notes

• The Q is a universal valve: it fits any charge pipe or manifold carrying a standard TiAL 50 mm V-band flange. The applications below are the N54 cars covered by the TiAL-flanged charge pipes listed above. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• 002568
